GEN 1 - 1124

GEN 1 – 1124

The Montag GEN 1 metering technology has been the standard for metering dry fertilizer since the mid 1980’s.

It is known as a well proven, simple and reliable design built from 300 series stainless steel.

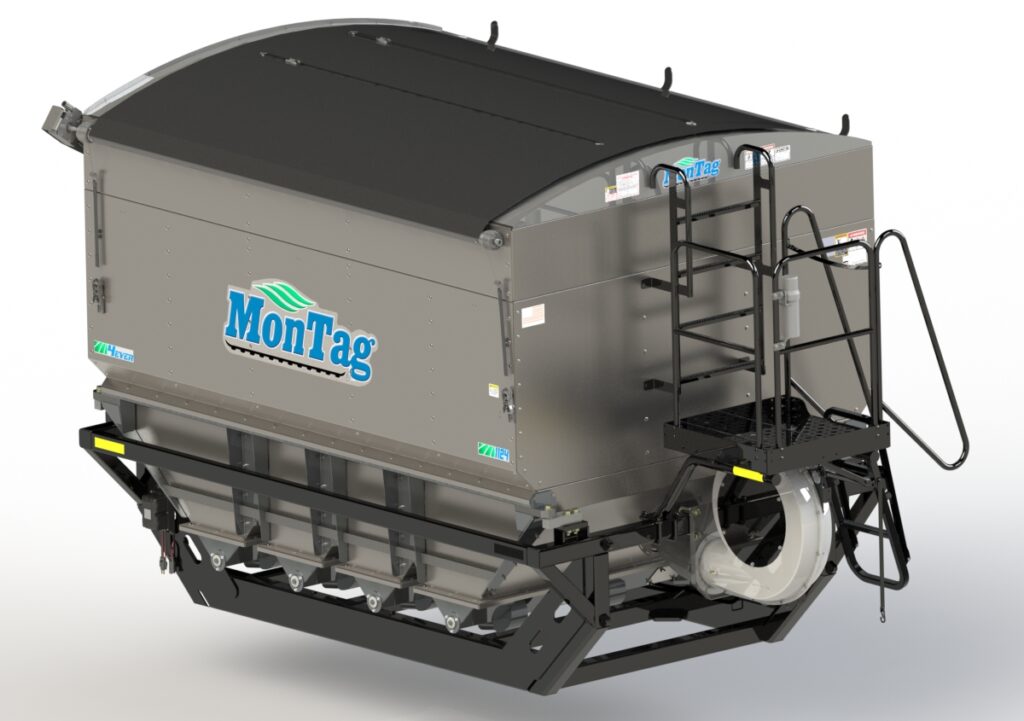

The 1124 is a largest GEN 1 metering system that Montag offers.  This machine uses 4- GEN 1 meters under a mammoth 13-16 ton capacity stainless steel fertilizer bin.    It can be mounted to Montag’s 20 ton cart.

Model Rows Hydraulic Capacity Hydraulic Pressure Pressure Return Case Drain
GEN 1 1124* 16, 18, or 24 25 gpm (95 lpm) 2850 psi (197 bar) 1 inch* 1 inch* 1/2 inch

* Requires a large body high flow motor return port, a 3/4″ SCV valve body with 3/4″ high flow coupler and/or teeing together two SCV pressure lines is recommended for optimal performance.



Option Benefit
Configurable

Customizable Options (GEN 1 1124):

  • Capacity: 13 or 16 tons
  • Product Blends: 1
  • Meter Outputs: 16-24 (before splitters)
  • Section Control: 1 or 4 sections
  • Platform Orientation
  • Technology & Scale Options
Bin Options

The 1124 includes a massive stainless-steel bin (13 or 16 tons total capacity).

  • The GEN 1 meter technology does not require a sealed bin due to the meter design.
  • An electronic wirelessly controlled roll-tarp system covers a massive fill area for easy tendering.

A full set of screens are included.
Efficient Hydraulic Design

The 1124 uses a Crary fan with an efficient hydraulic design.  Montag requires using 2 hydraulic SCV’s.

Built for reliable use in fertilizer applications.

  • Pressure relief protects key hydraulic components like the fan motor seal.
Air Delivery
  • 16, 18, or 24 outlets (2.5”)
    • Bolt-on GEN 1 meters can be interchanged after factory build to reconfigure row amount.
  • Splitters can be added to serve more rows at lower rates.
  • Row-reducer kits can be added to reduce the amount of outlets
Section Control
  • Supports 1 or 4 sections.
  • Sections can be added later.
  • Sections are controlled by hydraulic motors and PWM valves for durability.
Dry Controller
  • 37 Pin (JD GRC-Dry)
  • 47 Pin (JDRC2000, Raven RCM)
    • Options for integrated load cell wiring
  • Montag Dry Rate Controller (MDRC) (ISO)
Scales
  • Point ISO Scale
  • Scale-Link ISO Scale
  • Non-ISO Scale
  • Load Cells Only (Scale Ready)

Note: Controller compatibility varies with selected options. See the Technology Brochure for details.
Deck & Ladder

Ladder can be mounted on the front or rear and left or right side of machine.
Additional Features
  • Cart Option: Mountable to Montag’s 20 ton cart.
    • Optional hose routing package available for routing on cart.
  • Blockage Sensors: Wireless J.Assy kits available.
  • Light Kit: LED transport lights are available.
  • Warranty: 3-year coverage for peace of mind
    Looking for more information? Request a quote
