GEN 2 – 2208

Montag’s GEN 2 metering system has a unique modular design that allows it to be adapted to your needs as your operation changes and evolves for years to come.

The 2208 GEN 2 model is capable of blending 1 or 2 products at different rates from two poly bins (2 or 3 tons of total capacity).  It also can be configured with up to 8 rows and up to 4 sections. 

The reversible plenum and configurable platform allow for very flexible mounting options.

Model	Rows	Hydraulic Capacity	Hydraulic Pressure	Pressure	Return	Case Drain
GEN 2 – 2208	Up to 8	14 gpm (53 lpm)	2000 psi (138 bar)	1/2 inch	1/2 inch	1/2 inch

Option	Benefit
Fully Configurable	The GEN 2 series is designed to adapt to your needs and can be easily reconfigured in the field. Customizable Options (GEN 2 2208): Capacity: 2–3 tons Product Blends: 1-2 Meter Outputs: Up to 8 (before splitters) Section Control: 1–4 sections Bin Color: Gray, Yellow, or White Platform Orientation Slidegate: Manual or Hydraulic Technology & Scale Options

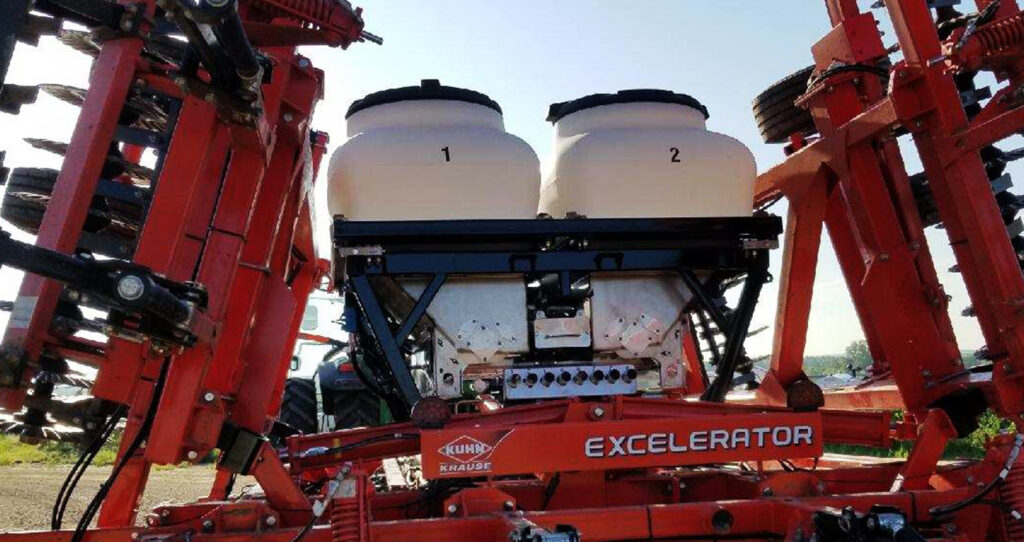

Bin Options	The 2208 includes two sealed bins (30 ft3 or 50 ft3 capacity per bin). They can be scaled and metered independently (2 products) or linked together for 1 product application. Available in gray, yellow, or white poly.
Efficient Hydraulic Design	The 2208 uses a Crary fan with an efficient hydraulic design that allows machine to operate on a single hydraulic SCV. Built for reliable use in fertilizer and cover crop applications. Pressure relief protects key hydraulic components like the fan motor seal.
Air Delivery	Up to eight 2” outlets, easily reconfigured. Splitters can be added to serve more rows at lower rates. A high-speed fan is also available.
Section Control	Supports up to 4 sections. Sections can be added later. Sections are controlled by hydraulic motors and PWM valves for durability.
Dry Controller	37 Pin (JD GRC-Dry) 47 Pin (JDRC2000, Raven RCM) Options for integrated load cell wiring Montag Dry Rate Controller (MDRC) (ISO) Option to include an ISO tee MTC200 Non-ISO Controller
Scales	Point ISO Scales Scale-Link ISO Scales Non-ISO Scales Load Cells Only (Scale Ready) No Scale Note: Controller compatibility varies with selected options. See the Technology Brochure for details.
Slide-Gates	Slide-gates allow farmers to segregate the product from the metering augers for easier clean-out and maintenance. Mechanical (Standard) Hydraulic (Optional on 2 Product 2208)
Deck & Ladder	Ladder can be mounted on the front or rear and left or right side of machine
Additional Features	Cart Option: Mountable to Montag’s 6 ton cart or directly onto some toolbars. Blockage Sensors: Wireless J.Assy kits available for fertilizer or seed. Light Kit: LED transport lights are available. Warranty: 3-year coverage for peace of mind

Looking for more information? Request a quote
