GEN 2 – 2224

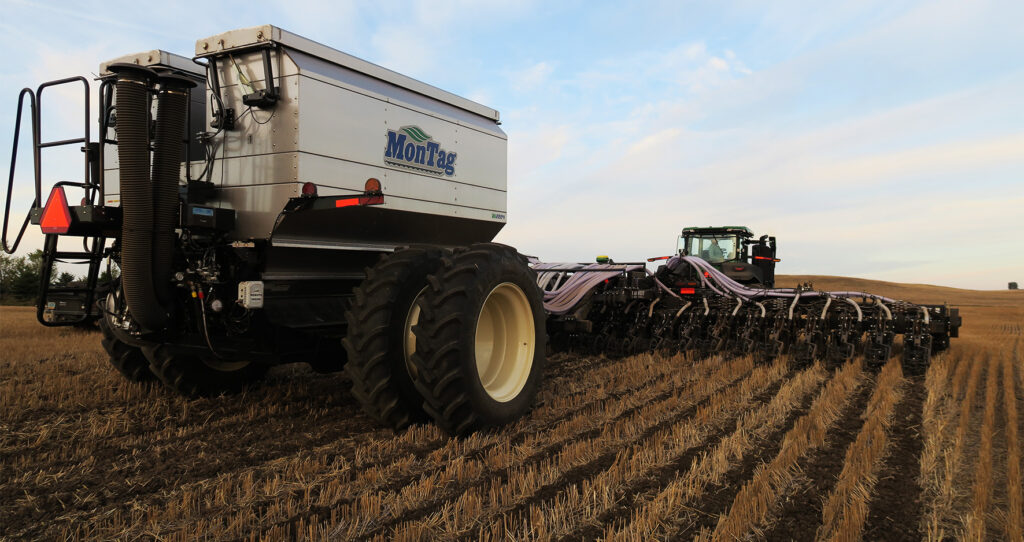

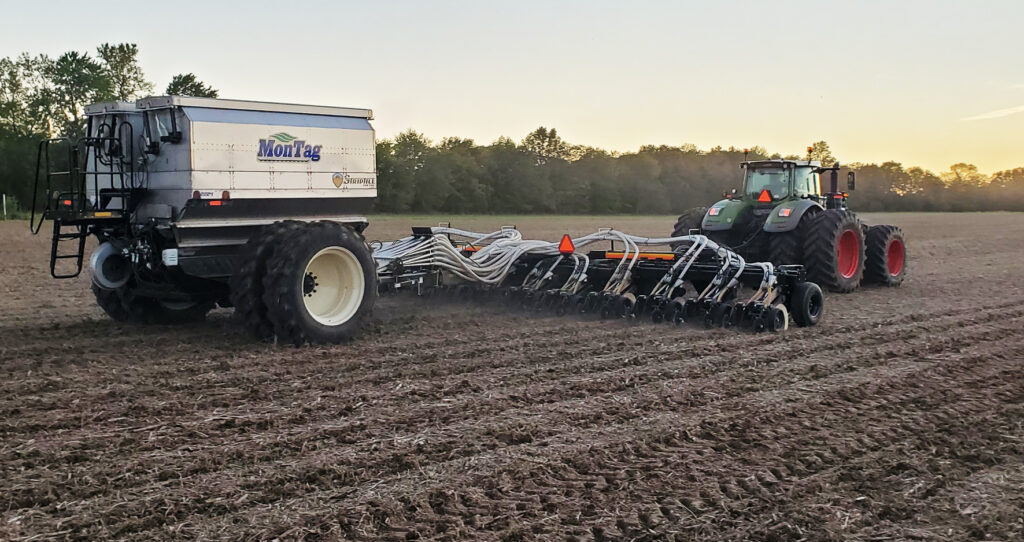

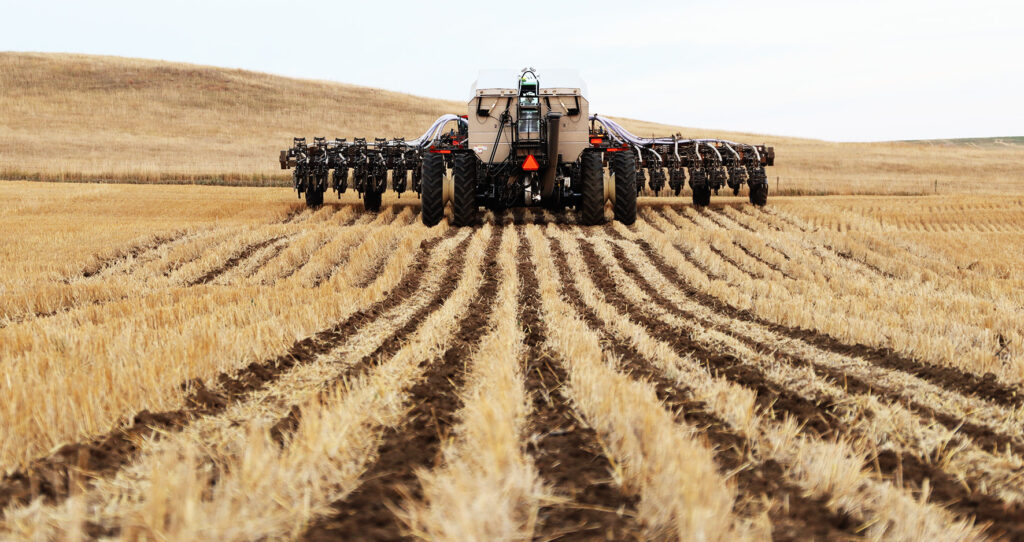

Montag’s GEN 2 metering system has a unique modular design that allows it to be adapted to your needs as your operation changes and evolves for years to come.

The 2224 GEN 2 model is capable of blending 2 products at different rates from two stainless bins (13 or 16 tons of total capacity).  It also can be configured with up to 24 rows and up to 4 sections. 

The reversible plenum and configurable platform allow for very flexible mounting options.

Model	Rows	Hydraulic Capacity	Hydraulic Pressure	Pressure	Return	Case Drain
GEN 2 2224*	Up to 24	25 gpm (95 lpm)	2850 psi (197 bar)	1 inch*	1 inch*	1/2 inch

* GEN 2 2224 requires a large body high flow motor return port, a 3/4″ SCV valve body with 3/4″ high flow coupler and/or teeing together two SCV pressure lines is recommended for optimal performance.

Option	Benefit
Fully Configurable	The GEN 2 series is designed to adapt to your needs and can be easily reconfigured in the field. Customizable Options (GEN 2 2224): Capacity: 13 or 16 tons Product Blends: 2 Meter Outputs: Up to 24 (before splitters) Section Control: 1–4 sections Platform Orientation Slidegate: Hydraulic Technology & Scale Options

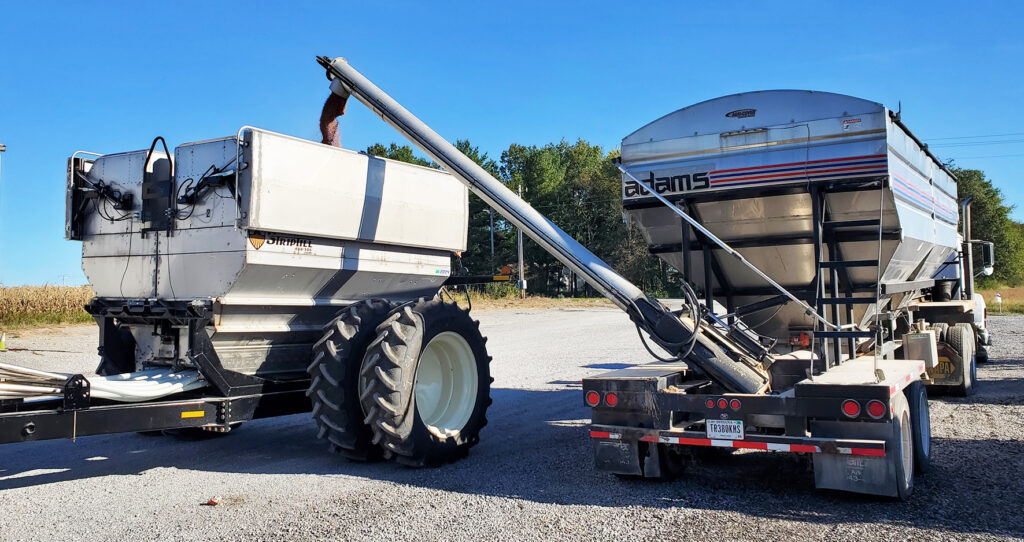

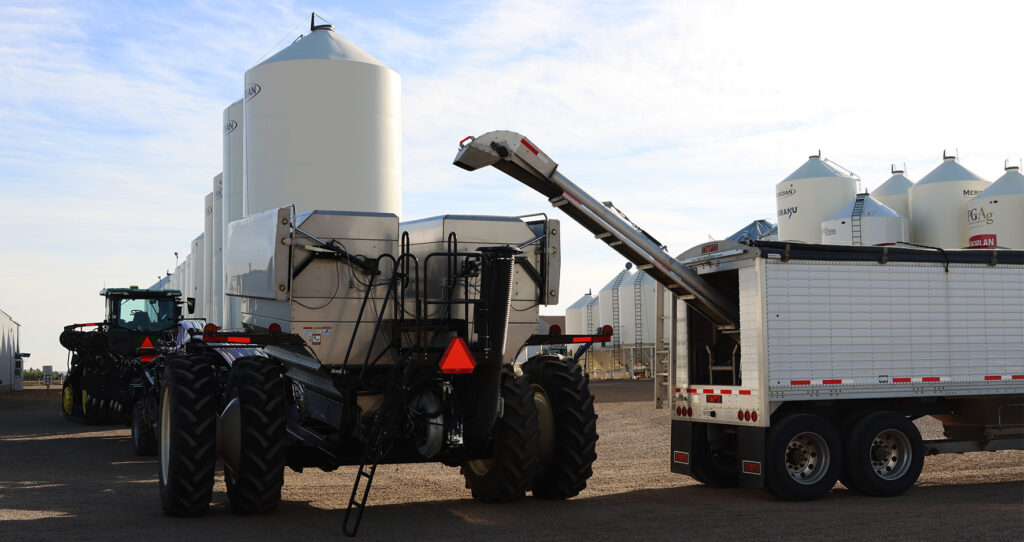

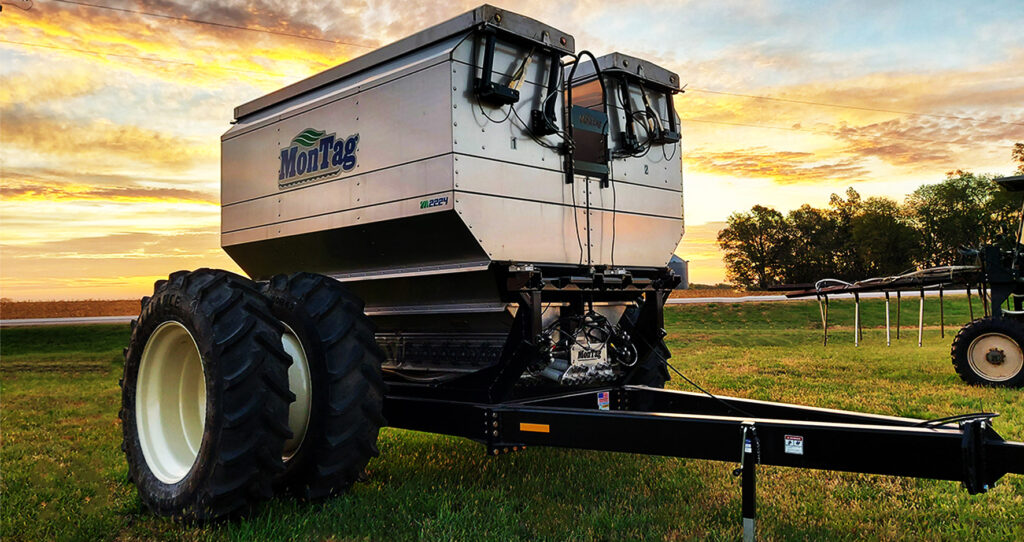

Bin Options	The 2224 includes two sealed stainless-steel bins (13 or 16 tons total capacity). They can be scaled and metered independently (2 products) or “chained” together for 1 product application in the MDRC controller. The massive fill area is covered with twin remotely controlled powered lids for easy tendering. A full set of screens are included.
Efficient Hydraulic Design	The 2224 uses a Crary fan with an efficient hydraulic design. Montag recommends using 2 hydraulic SCV’s. Built for reliable use in fertilizer and cover crop applications. Pressure relief protects key hydraulic components like the fan motor seal.
Air Delivery	Up to twenty-four 2” outlets, easily reconfigured. Splitters can be added to serve more rows at lower rates.
Section Control	Supports up to 4 sections. Sections can be added later. Sections are controlled by hydraulic motors and PWM valves for durability.
Dry Controller	Montag Dry Rate Controller (MDRC) (ISO)
Scales	Point ISO Scales Scale-Link ISO Scales Load Cells Only (Scale Ready) Note: Controller compatibility varies with selected options. See the Technology Brochure for details.
Slide-Gates	Hydraulic slide-gates allow farmers to segregate the product from the metering augers for easier clean-out and maintenance.
Deck & Ladder	Ladder can be mounted on the front or rear and left or right side of machine.
Additional Features	Cart Option: Mountable to Montag’s 20 ton cart. Optional hose routing package available for routing on cart. Blockage Sensors: Wireless J.Assy kits available. Light Kit: LED transport lights are available. Warranty: 3-year coverage for peace of mind

Looking for more information? Request a quote
