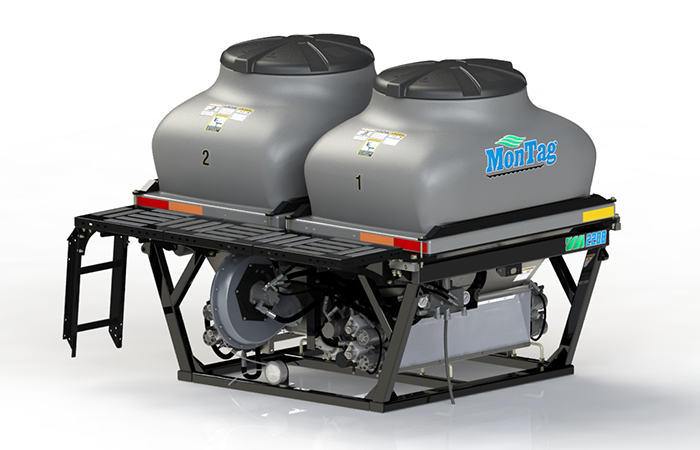

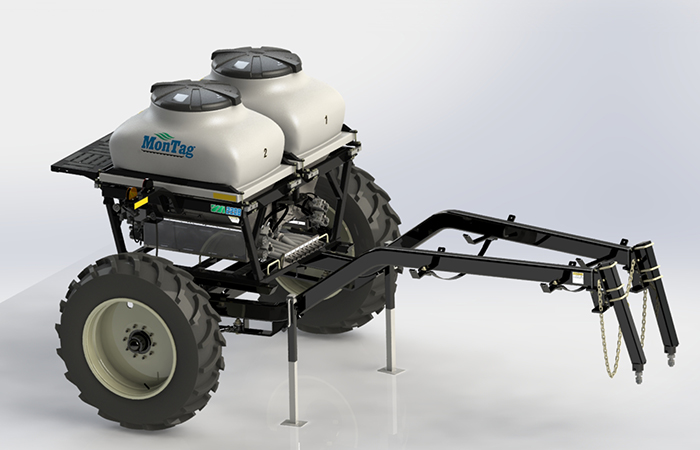

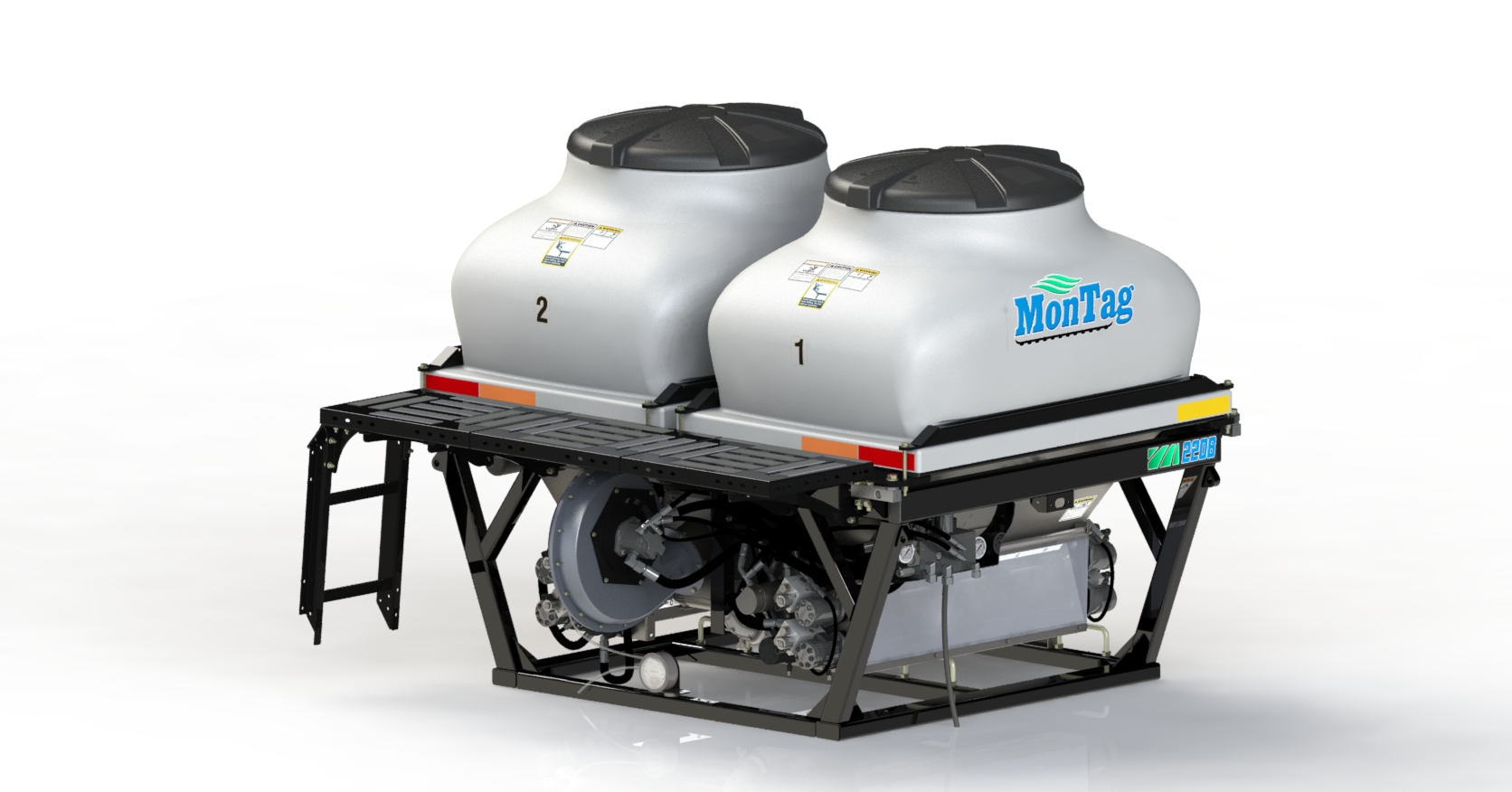

GEN II Fertilizer Unit

The 2208 is the latest product offering in the GEN II family. Like the larger 2218, the 2208 is a very feature rich metering system, capable of being used for cover crops, fertilizer application or a combination of the two. Available in either 60 or 100 cubic foot tank capacity the metering system can apply up to 800 lbs. to the acre at 5 mph. while being gentle enough to safely meter cover crop seed.

Features

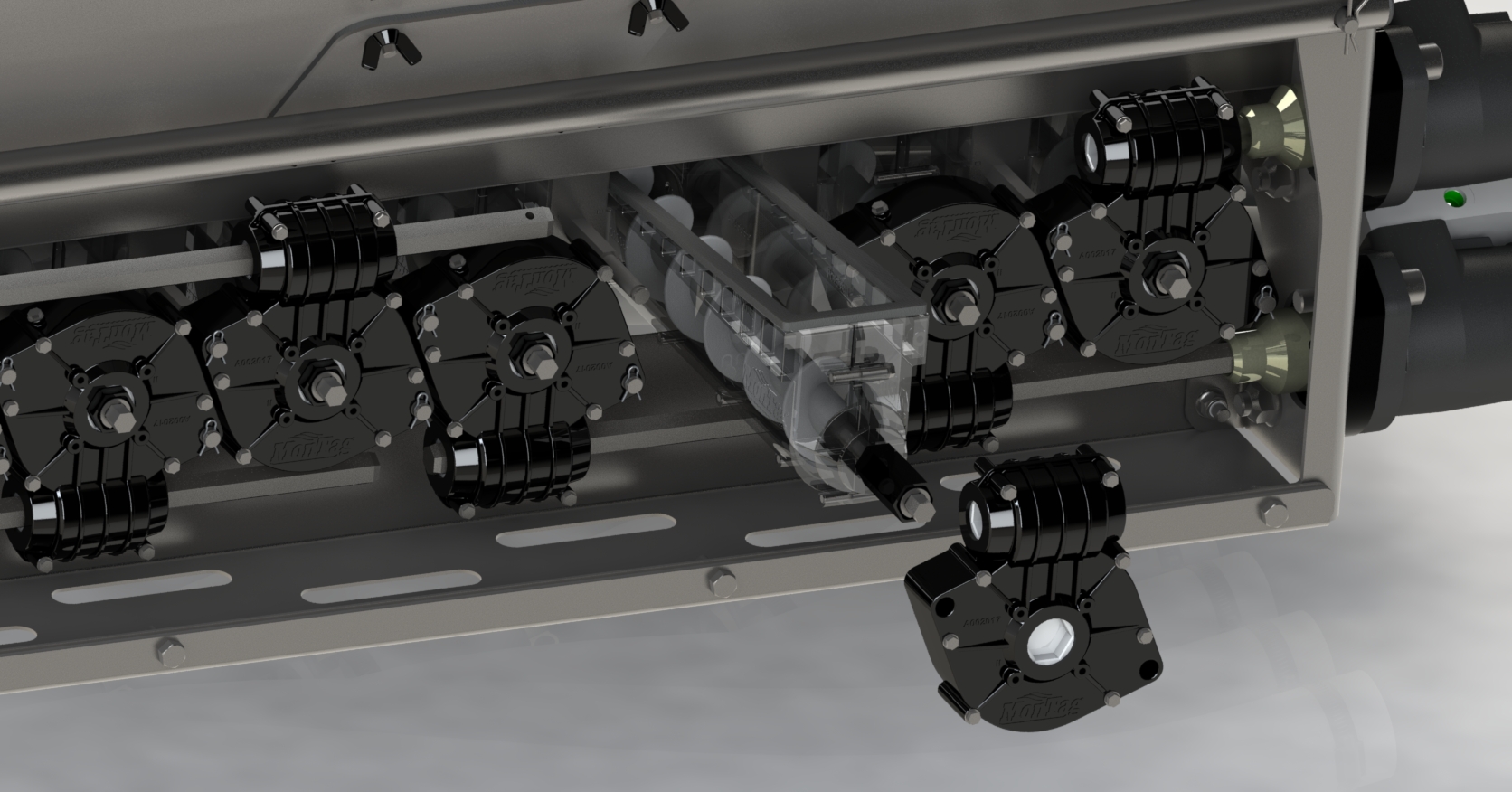

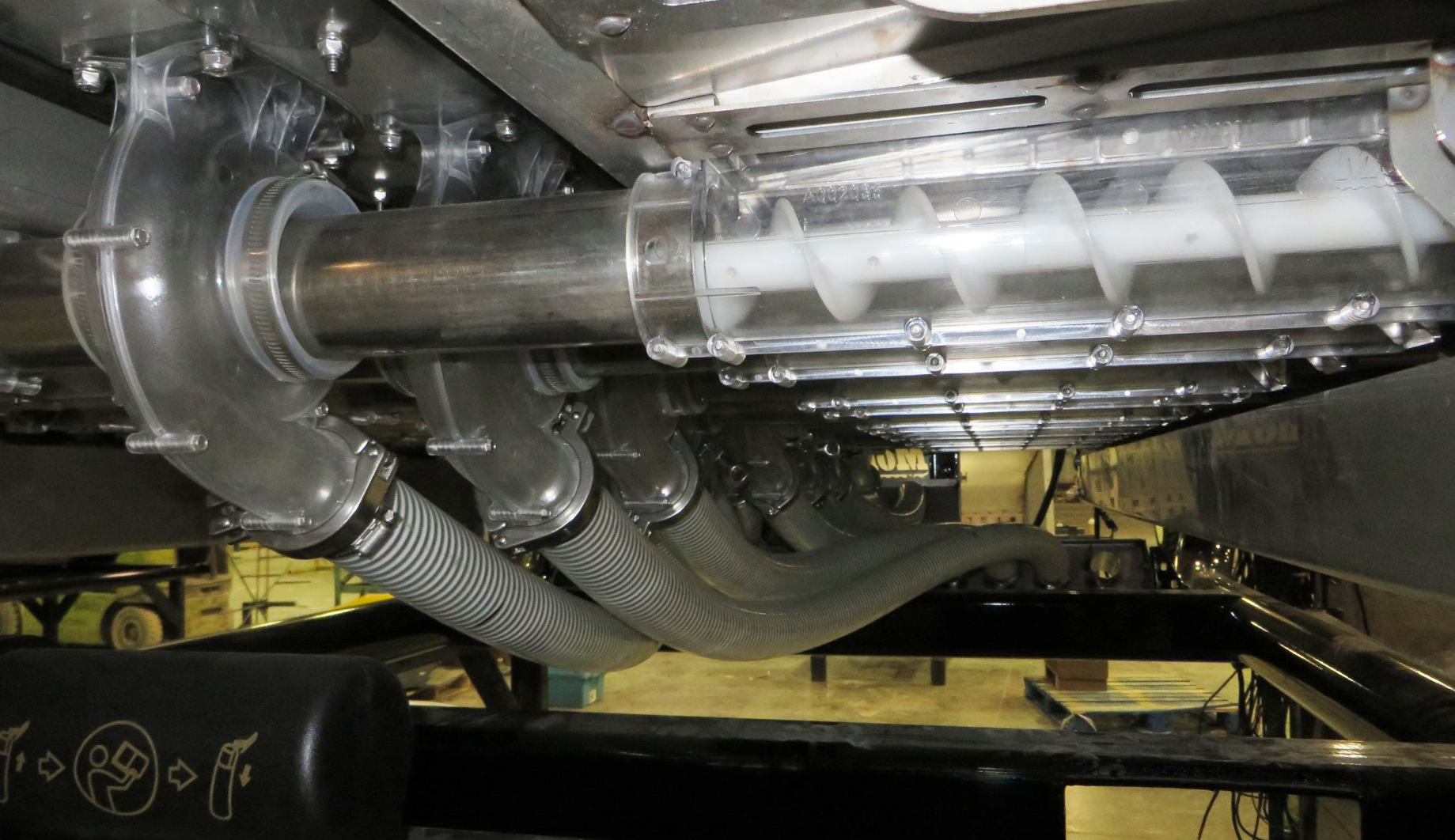

High quality injection molded HDPE plastic augers
High quality injection molded HDPE plastic augers

  • Very accurate metering with large rate range (25lbs. – 500lbs. per tank). See capacity chart for details.
  • No need to change metering drive for full rate range – unlike other competing brands.
Food Grade Stainless Steel and Poly Construction
Food Grade Stainless Steel and Poly Construction

  • Long life, cleans up easy

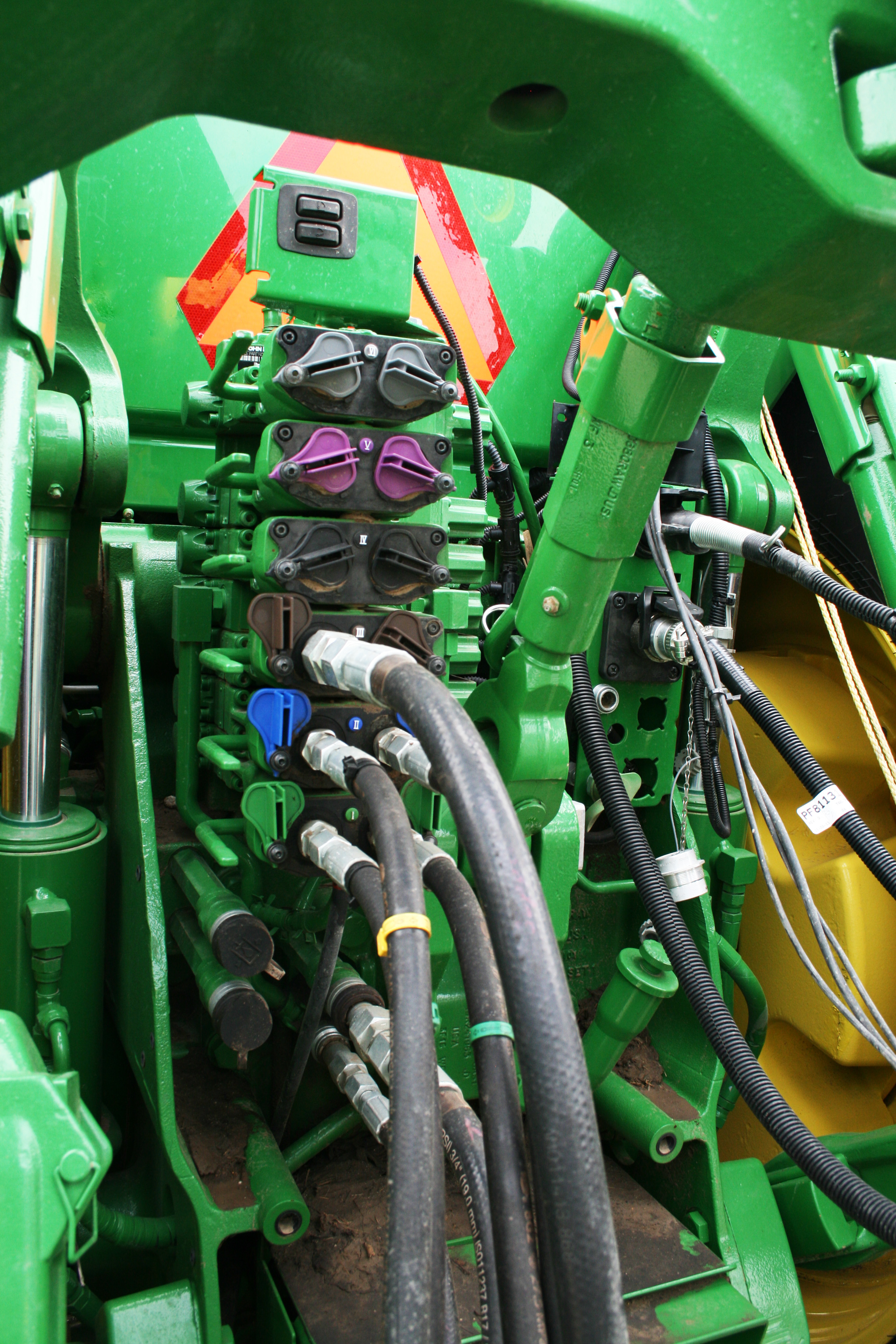

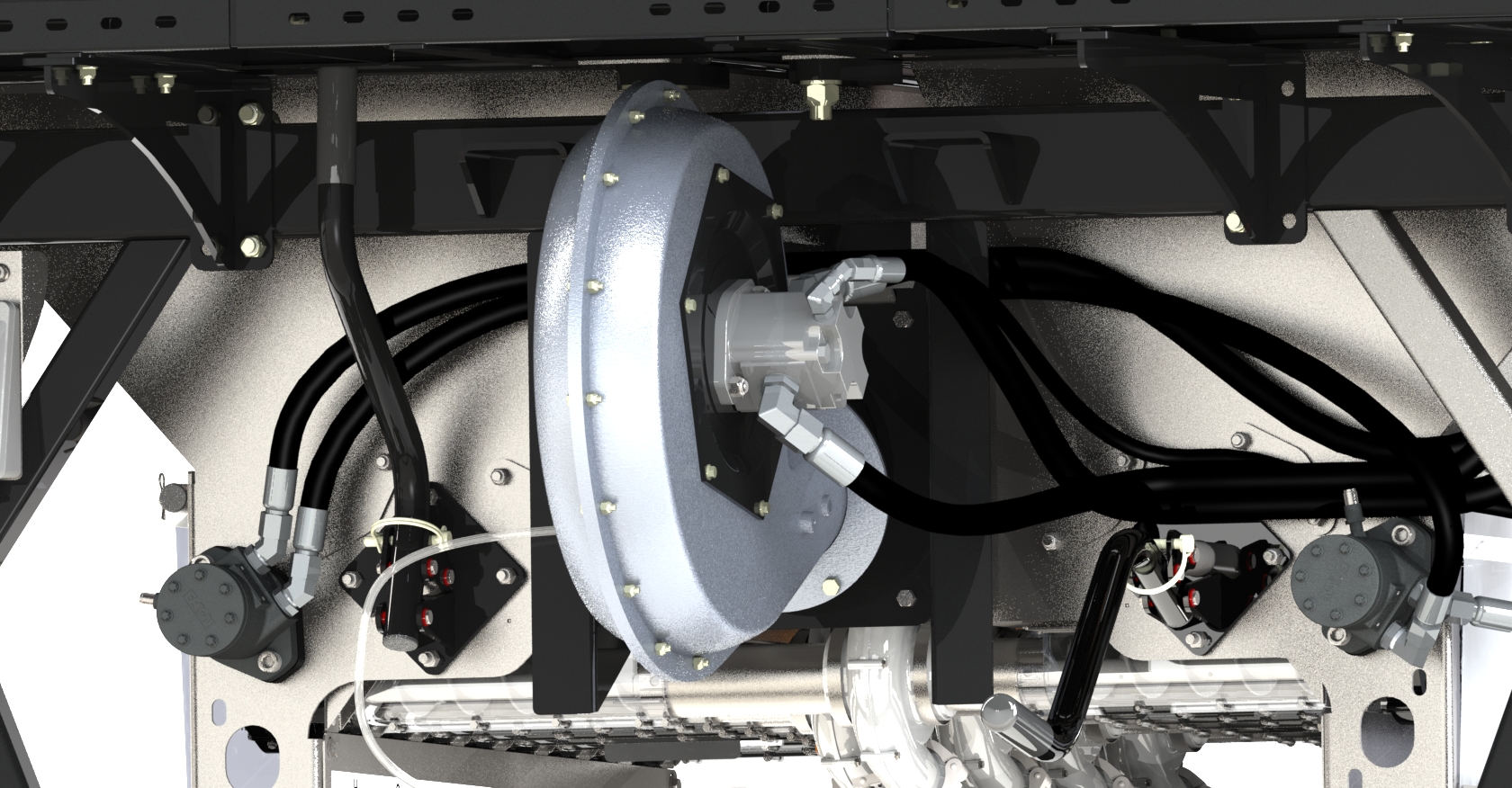

Single Hydraulic Input Requirement
Single Hydraulic Input Requirement

  • Reduces hydraulic requirements allowing for more options for grower

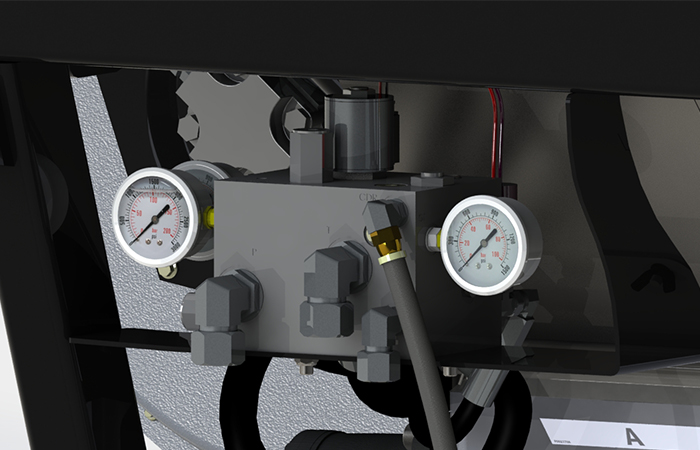

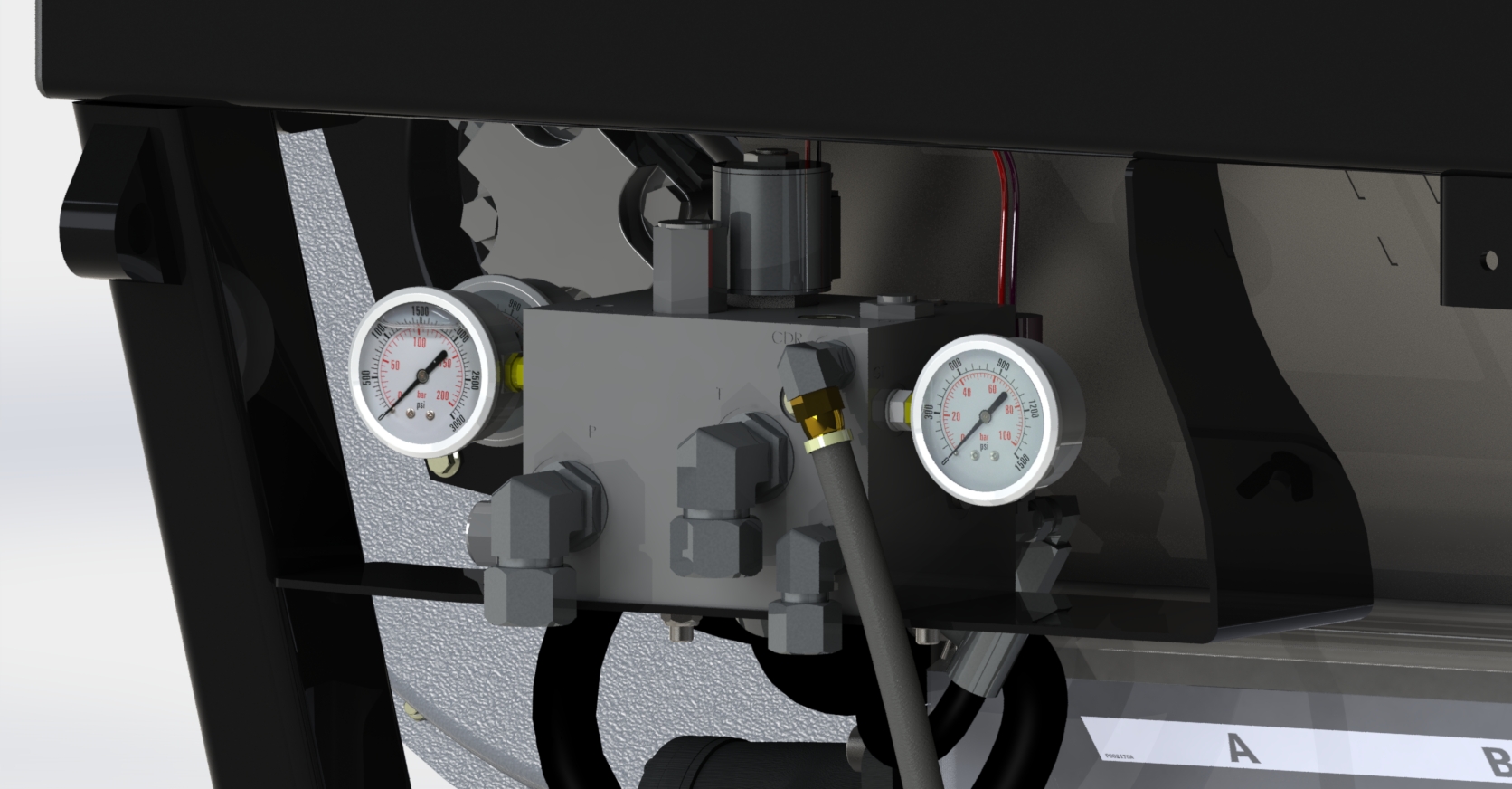

The 2208 has two options for PWM Hydraulic Block, a Single or a Dual product.
The 2208 has two options for PWM Hydraulic Block, a Single or a Dual product.

  • The Montag specific hydraulic block allows for industry leading control of the product metering system and the fan with only one hydraulic bank required. The block includes safety valves to protect the fan seals and reduces heat in the hydraulic system.

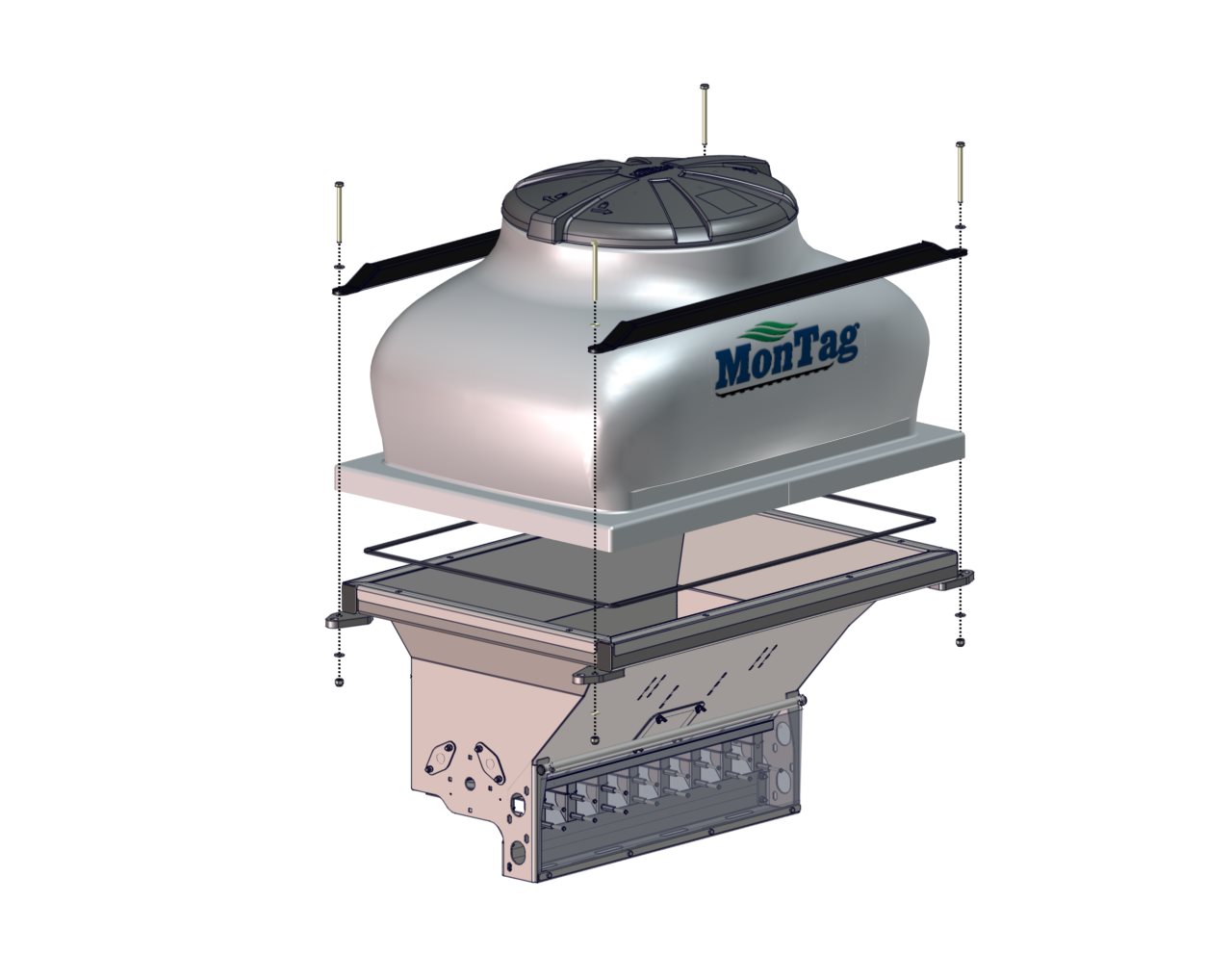

Sealed Tank
Sealed Tank

  • Tank is sealed to maintain air pressure between bins for greater row to row accuracy.
  • Simple yet rugged designed tank & lid seal, using automotive rubber gasket.

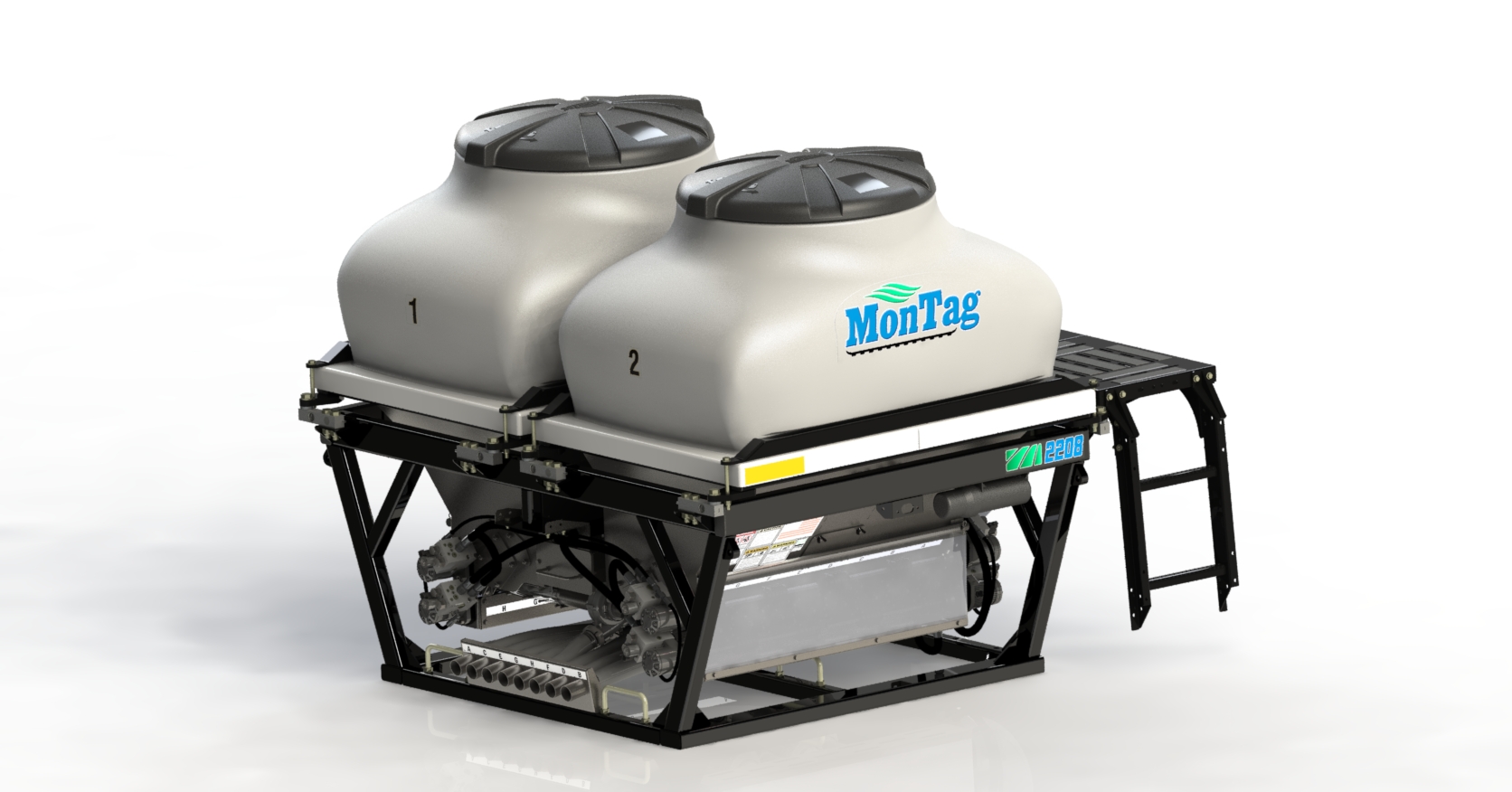

Tank Ladder access
Tank Ladder access

  • Safe entry and exit.
  • Easy access for clean out.

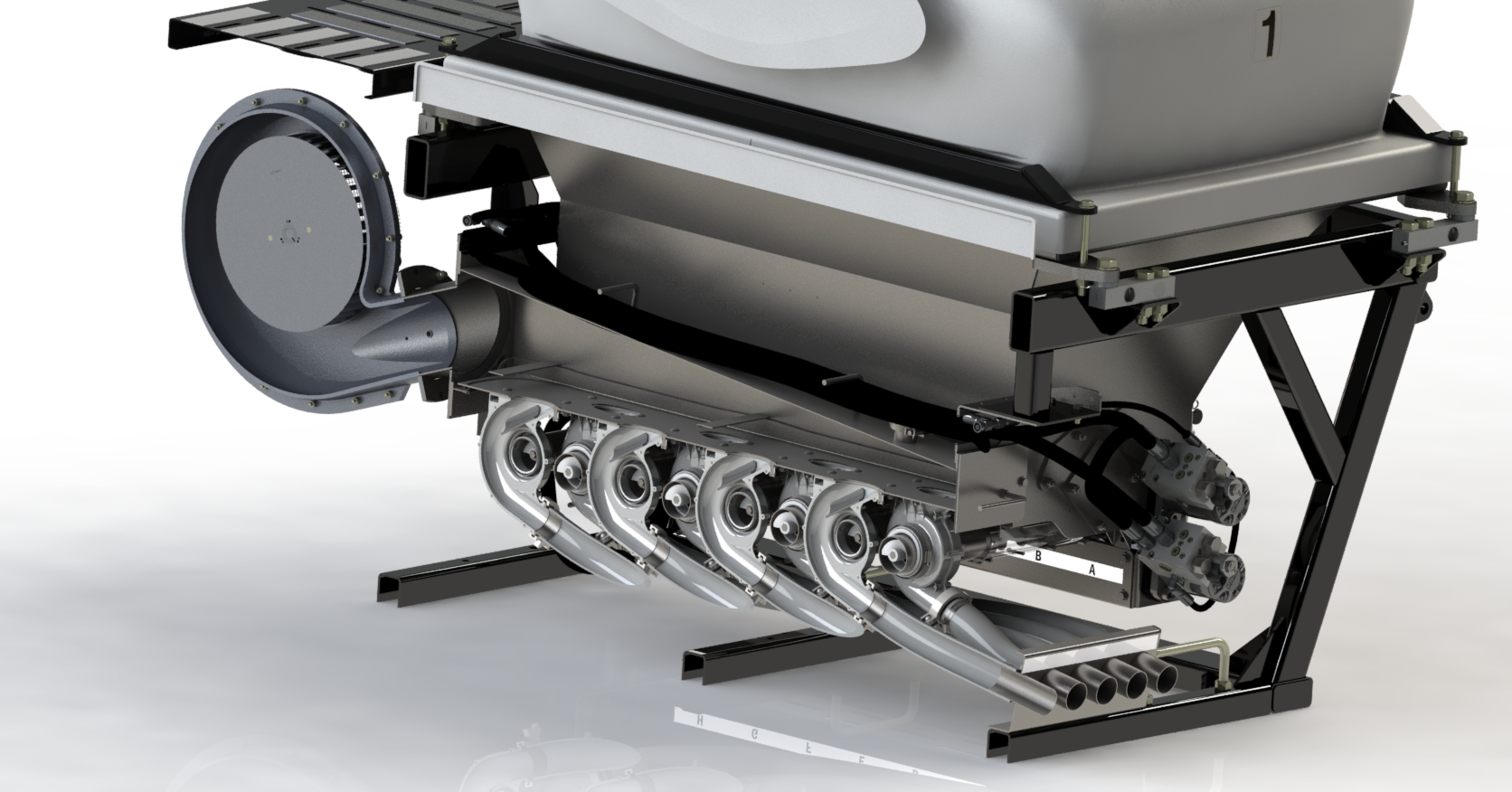

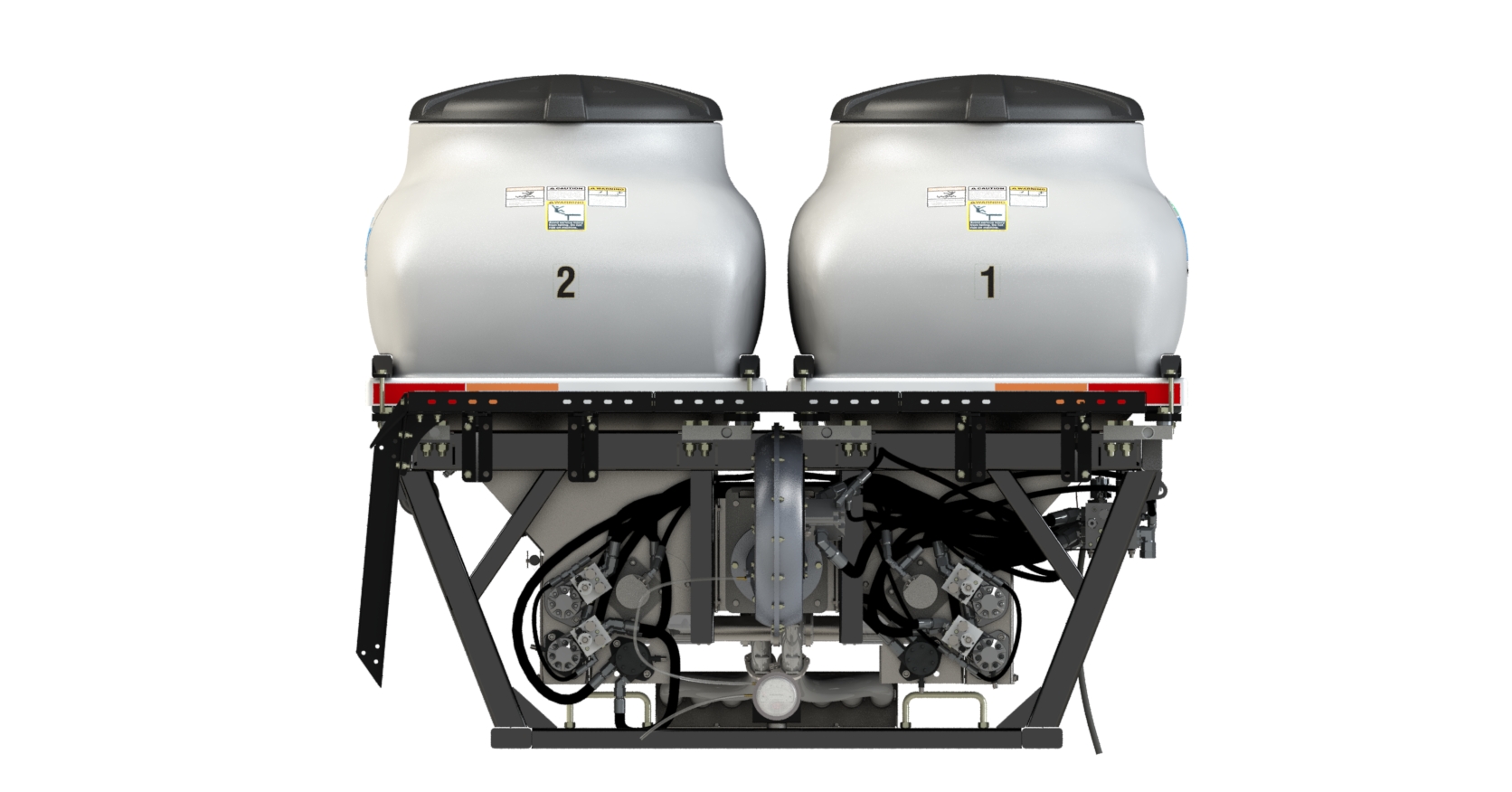

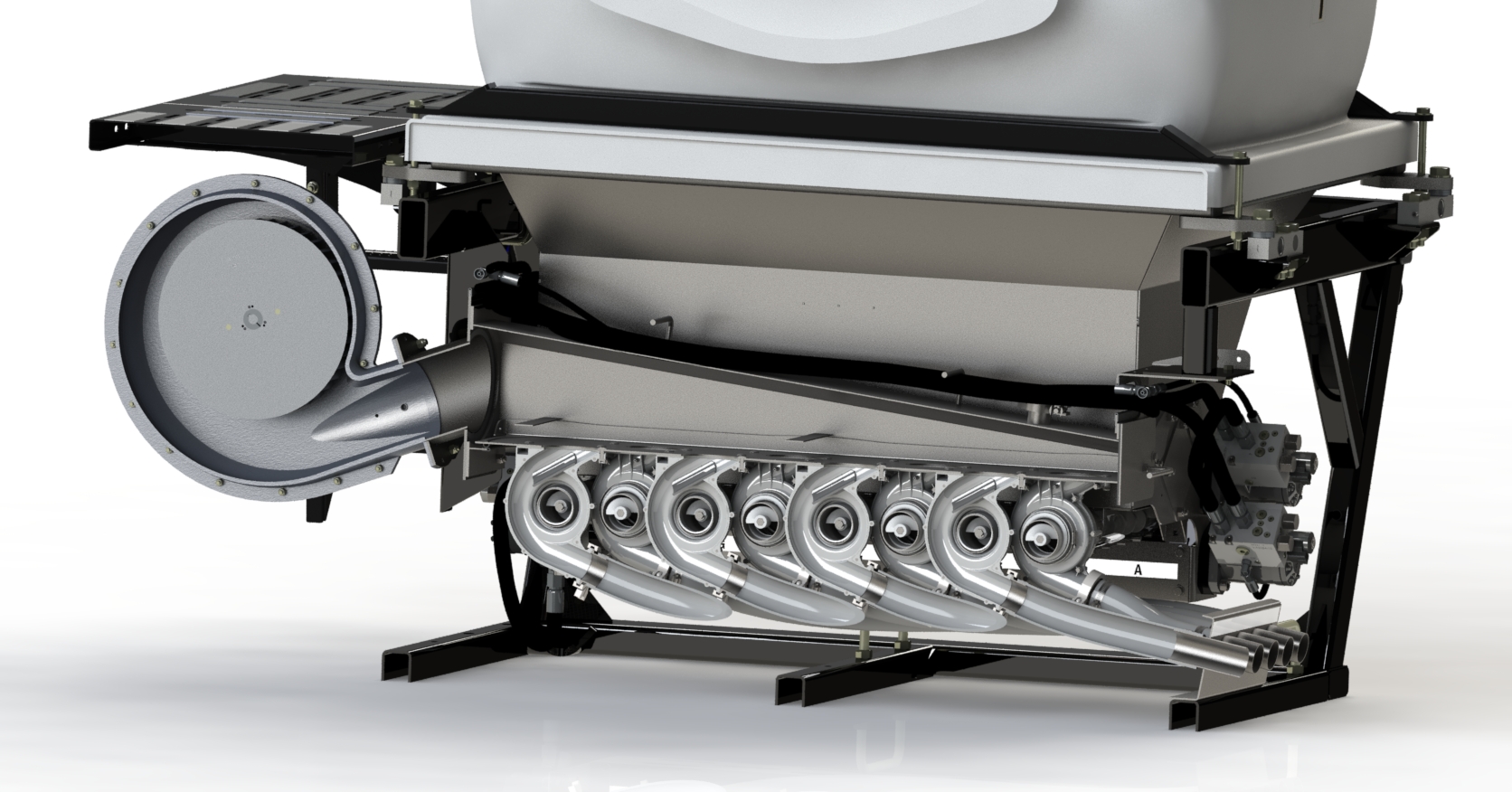

Improved Montag Fluid Bed – 2208 Air Delivery System
Improved Montag Fluid Bed – 2208 Air Delivery System

  • 2208 air system is streamlined to improve aerodynamics and reduce horsepower requirements
  • Fertilizer is introduced into the air stream at the air chamber requiring less pressure to move it to the row unit
Components are corrosion resistant
Components are corrosion resistant

  • Any component that comes in direct contact with fertilizer is either stainless steel or plastic.
  • Components outside the tank (such as Valves / Weigh bars / Elec. Harnessing) are all selected with our corrosive environment in mind for in field reliability.

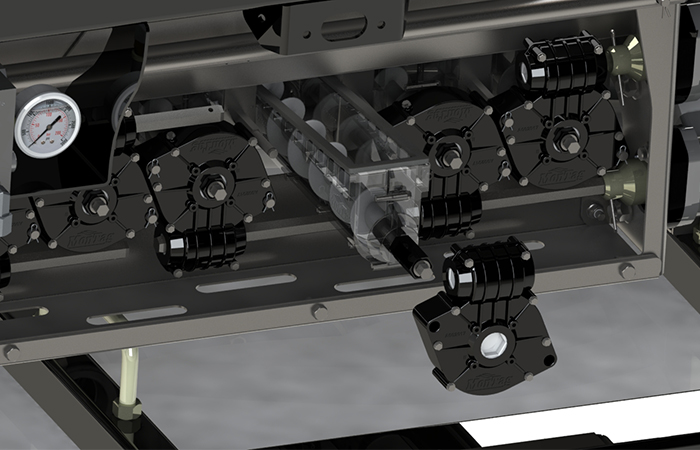

Up to 4 section configurations
Up to 4 section configurations

  • Sections can be added to the 2208 system at any time – giving you added flexibility.

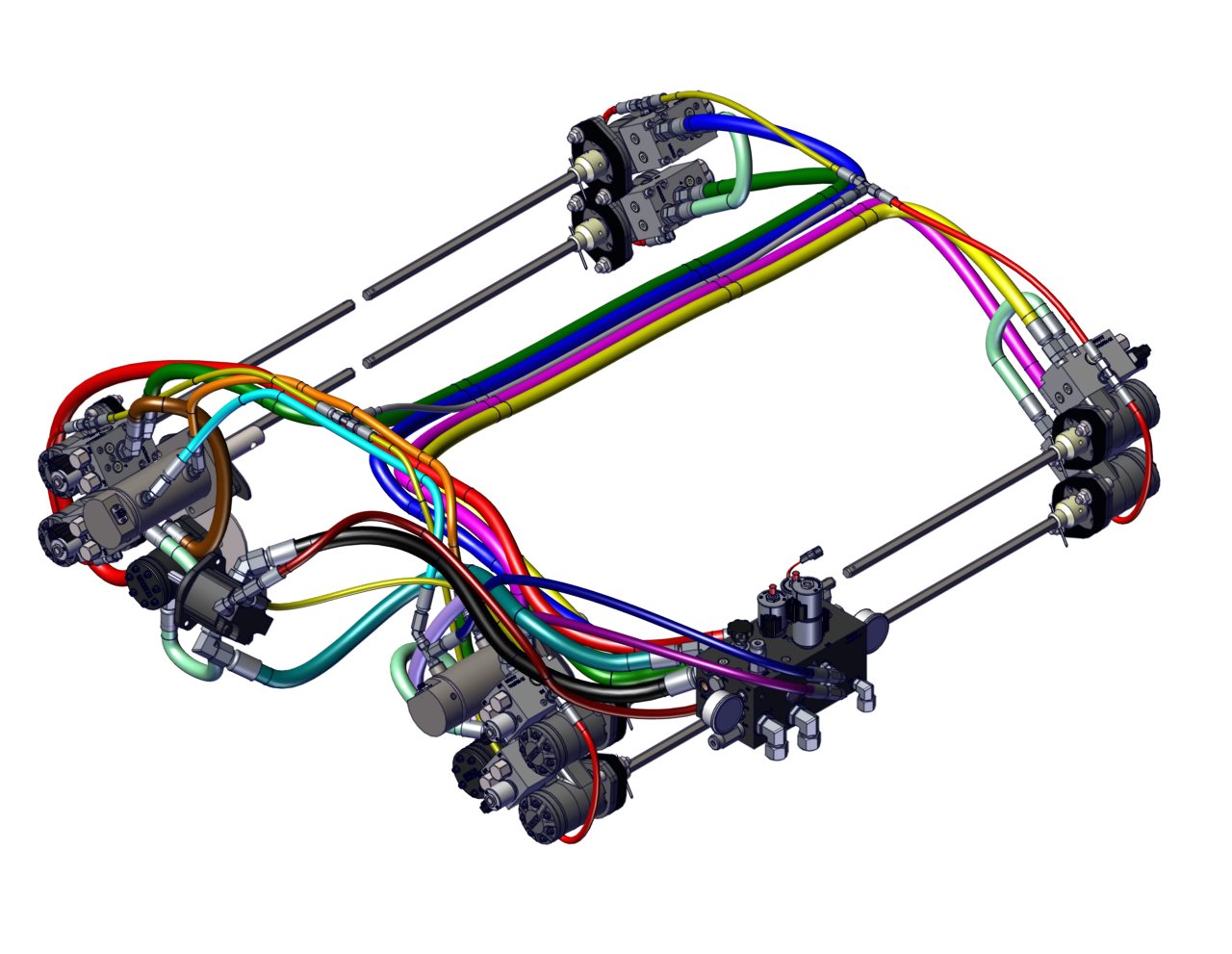

  • Sections are controlled with hydraulic motors and PWM valves for infield reliability.
Configurable Rows
Configurable Rows

  • Rows can be added and subtracted to fit your farming operation’s needs.

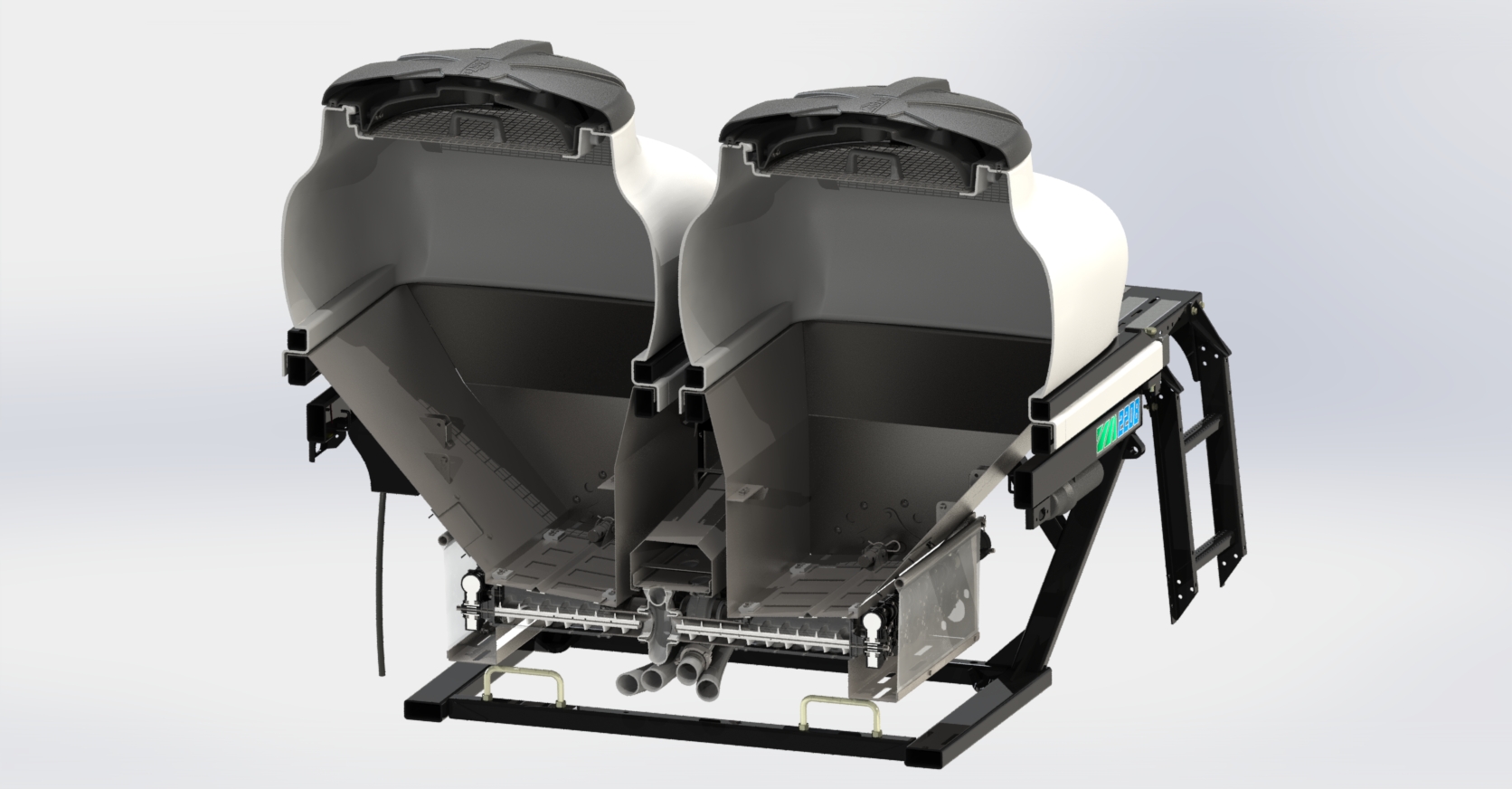

Tank Design
Tank Design

  • Functional yet streamlined in its design.
  • Integrated twist-lock lid.

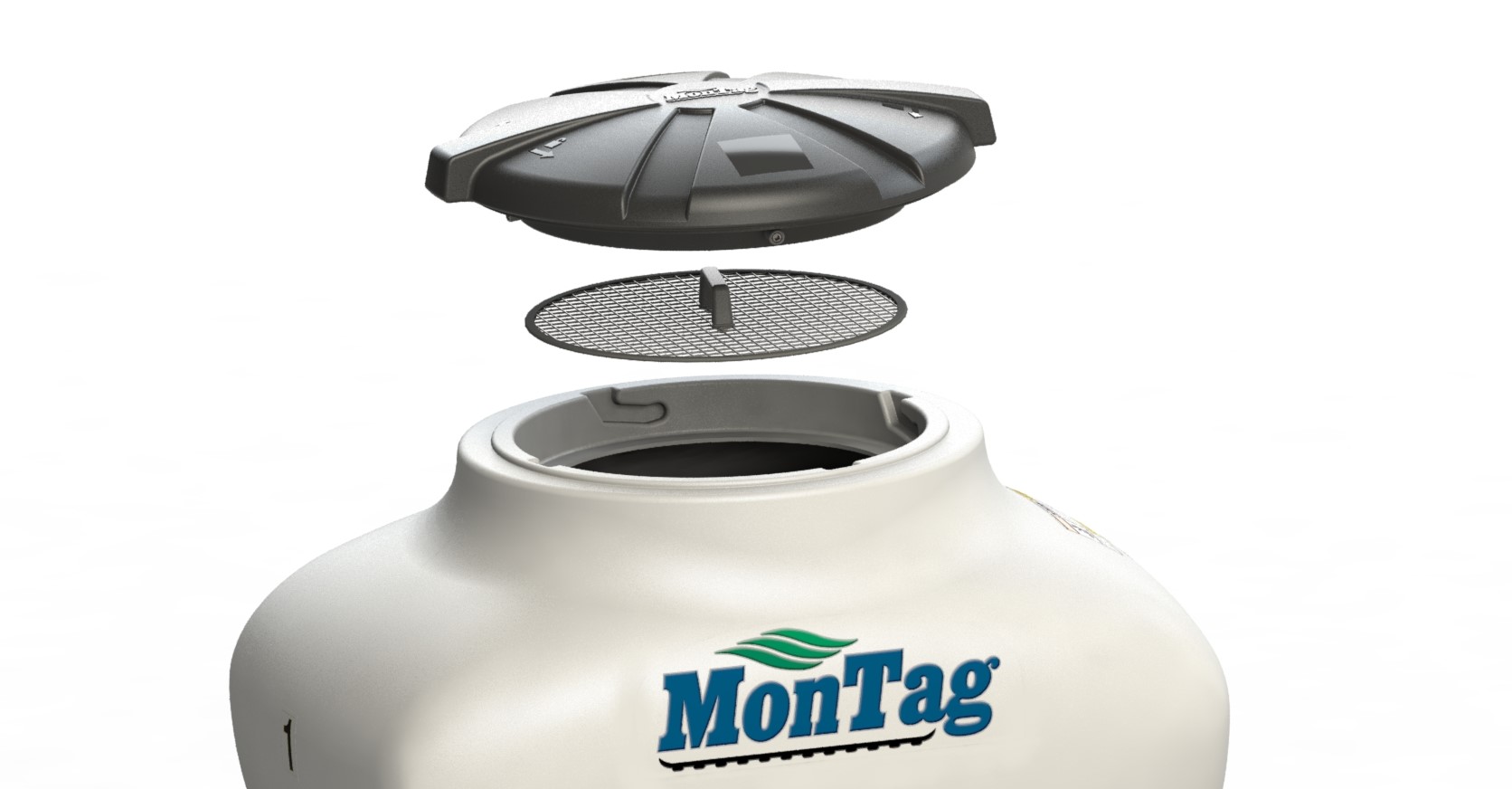

Screen Design
Screen Design

  • Screens are integrated into the tank to removes large materials when loading that can plug down tubes or can harm metering system.
  • One ¾” screen per tank is provided.
Metering Discharge Outlets
Metering Discharge Outlets

  • Outlets can be turned to blow either forward or backwards by turning the air chamber pan, this allows the grower to choose the direction the fan and outlets are positioned depending on the application needed.


Options


Configurable Rows
Configurable Rows

  • Rows can be added and subtracted to fit your farming operation’s needs.

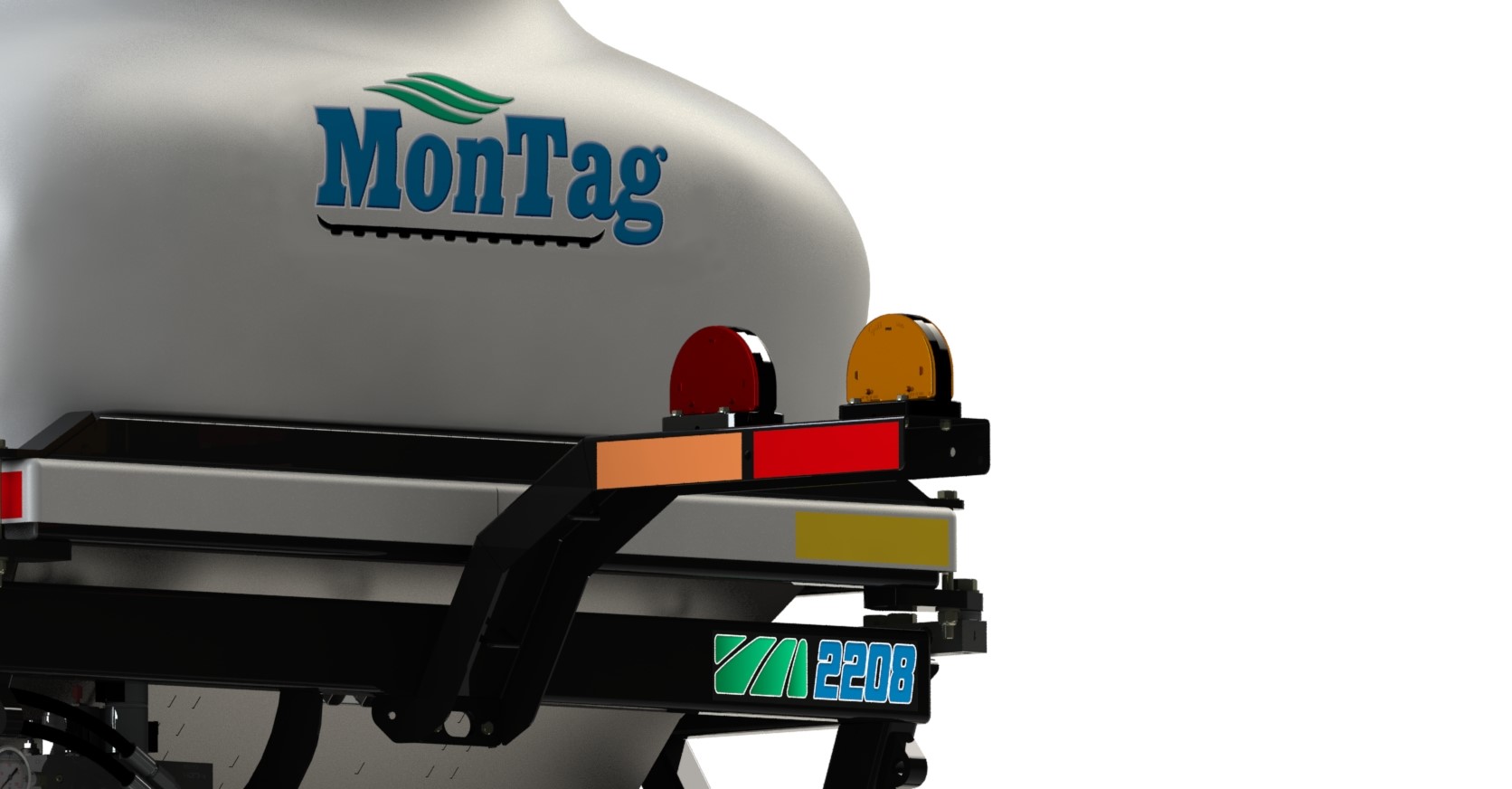

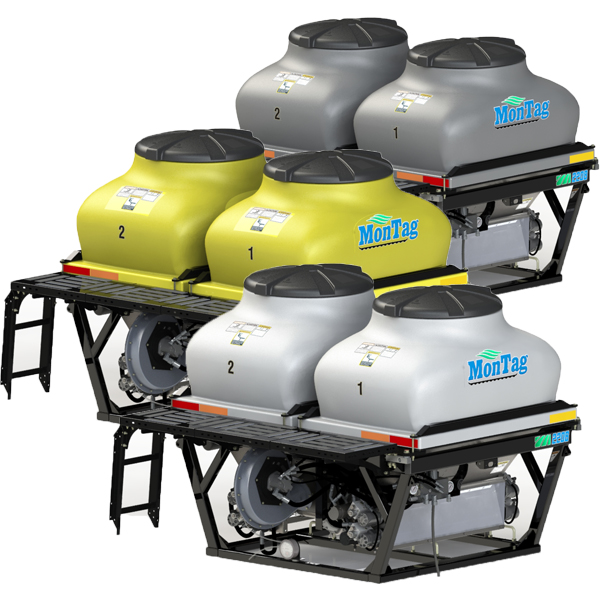

Tank Color
Tank Color

  • Tank colors available in gray, yellow and white.
Up to 4 section configurations
Up to 4 section configurations

  • Sections can be added to the 2208 system at any time – giving you added flexibility.
  • Sections are controlled with hydraulic motors and PWM valves for infield reliability.

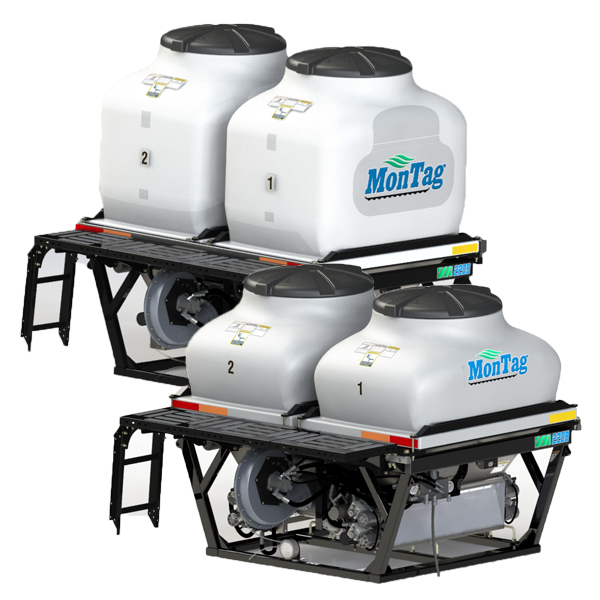

Tank Size
Tank Size

  • The 2208 comes with two optional sizes:
    60 cubic feet (2- 30 cuft tanks) or
    100 cubic feet (2- 50 cuft tanks).
ISOBUS Rate Controller
ISOBUS Rate Controller

  • Specifically developed to operate 2208 systems with full functionality.
  • Compatible with most of the industries displays – Contact Montag representative for more information.

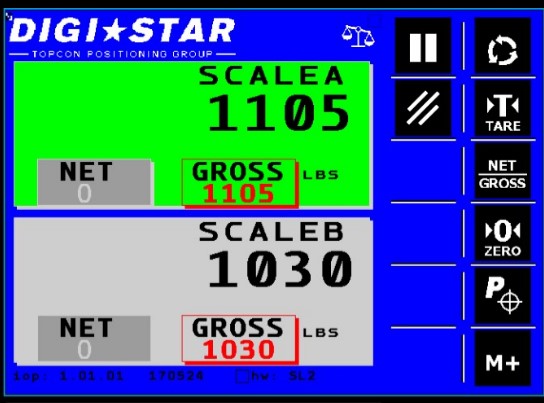

ISOBUS Scale
ISOBUS Scale

  • The 2208 comes “Scale Ready” for either a digital or ISOBUS solution.
  • The Standard version can have up to 1 scale, while the Deluxe version can have up to 2 scales.
Slidegate
Slidegate

  • Mechanical version available on both Standard 2208 and Deluxe 2208.
  • Hydraulic Slidegate available on Deluxe 2208 only.
