GEN 2 - 2108

GEN 2 – 2108

Montag’s GEN 2 metering system has a unique modular design that allows it to be adapted to your needs as your operation changes and evolves for years to come.

The 2108 GEN 2 model has a single poly bin (1 or 1.5 tons total capacity). It also can be configured with up to 8 rows and up to 4 sections. 

The reversible plenum and configurable platform allow for very flexible mounting options.

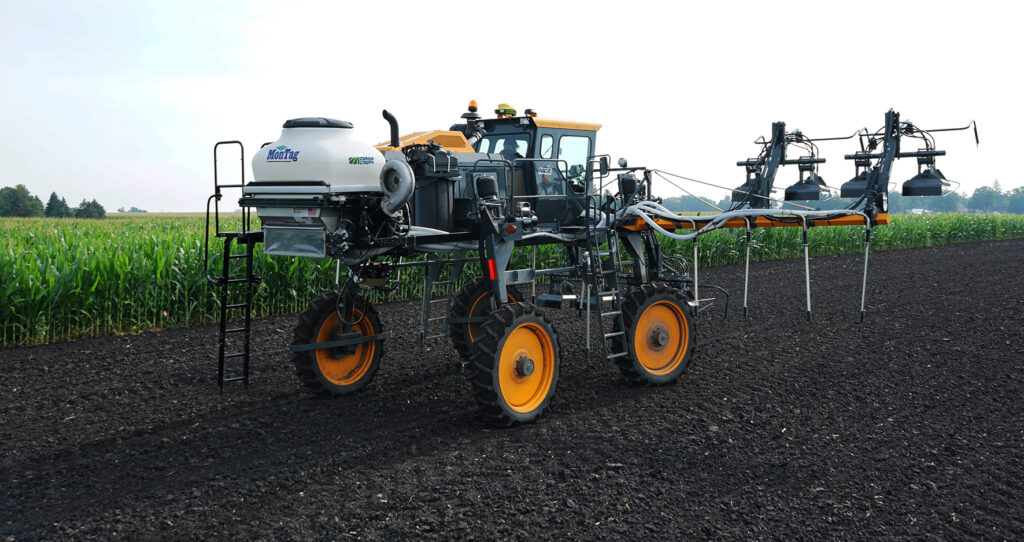

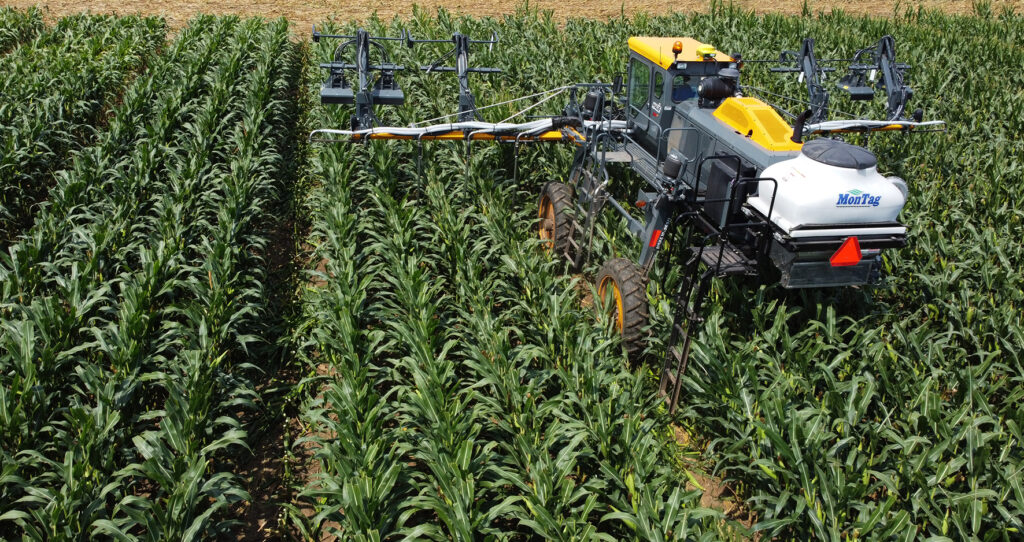

For additional Cover Crop application options, check out the GEN 2 – 2108 mounted on the Hagie 204.

Model Rows Hydraulic Capacity Hydraulic Pressure Pressure Return Case Drain
GEN 2 – 2108 Up to 8 14 gpm (53 lpm) 2000 psi (138 bar) 1/2 inch 1/2 inch 1/2 inch



Option Benefit
Fully Configurable

The GEN 2 series is designed to adapt to your needs and can be easily reconfigured in the field.

Customizable Options (GEN 2 2108):

  • Capacity: 1–1.5 tons
  • Product Blends: 1
  • Meter Outputs: Up to 8 (before splitters)
  • Section Control: 1–4 sections
  • Bin Color: Gray, Yellow, or White
  • Platform Orientation
  • Slidegate: Manual
  • Technology & Scale Options
Bin Options

The 2108 includes a sealed bin (30 ft3 or 50 ft3 total capacity).

  • Available in gray, yellow, or white poly.
Efficient Hydraulic Design

The 2108 uses a Crary fan with an efficient hydraulic design that allows machine to operate on a single hydraulic SCV.

Built for reliable use in fertilizer and cover crop applications.

  • Pressure relief protects key hydraulic components like the fan motor seal.
Air Delivery
  • Up to eight 2” outlets, easily reconfigured.
  • Splitters can be added to serve more rows at lower rates.
  • A high-speed fan is also available.
Section Control
  • Supports up to 4 sections.
  • Sections can be added later.
  • Sections are controlled by hydraulic motors and PWM valves for durability.
Dry Controller
  • 37 Pin (JD GRC-Dry)
  • 47 Pin (JDRC2000, Raven RCM)
    • Options for integrated load cell wiring
  • Montag Dry Rate Controller (MDRC) (ISO)
    • Option to include an ISO tee
  • MTC200 Non-ISO Controller
  • GSC-1000 (Micro-Trak) Non-ISO Simple Rate Controller
  • Add-On 3rd Product
    • Uses MDRC on another Montag machine
Scales
  • Point ISO Scales
  • Scale-Link ISO Scales
  • Non-ISO Scales
  • Load Cells Only (Scale Ready)
  • No Scale
  • Add-On 3rd Product Scale
    • Requires ISO Scale-Link scales on another Montag machine

Note: Controller compatibility varies with selected options. See the Technology Brochure for details.
Slide-Gates Mechanical slide-gates allow farmers to segregate the product from the metering augers for easier clean-out and maintenance.
Deck & Ladder  Ladder can be mounted on the front or rear and left or right side of machine.
Additional Features
  • Blockage Sensors: Wireless J.Assy kits available for fertilizer or seed.
  • Light Kit: LED transport lights are available.
  • Warranty: 3-year coverage for peace of mind
  • GEN 2 - 2108
  • GEN 2 - 2108
  • GEN 2 - 2108
  • GEN 2 - 2108
  • GEN 2 - 2108
  • GEN 2 - 2108
Looking for more information? Request a quote
