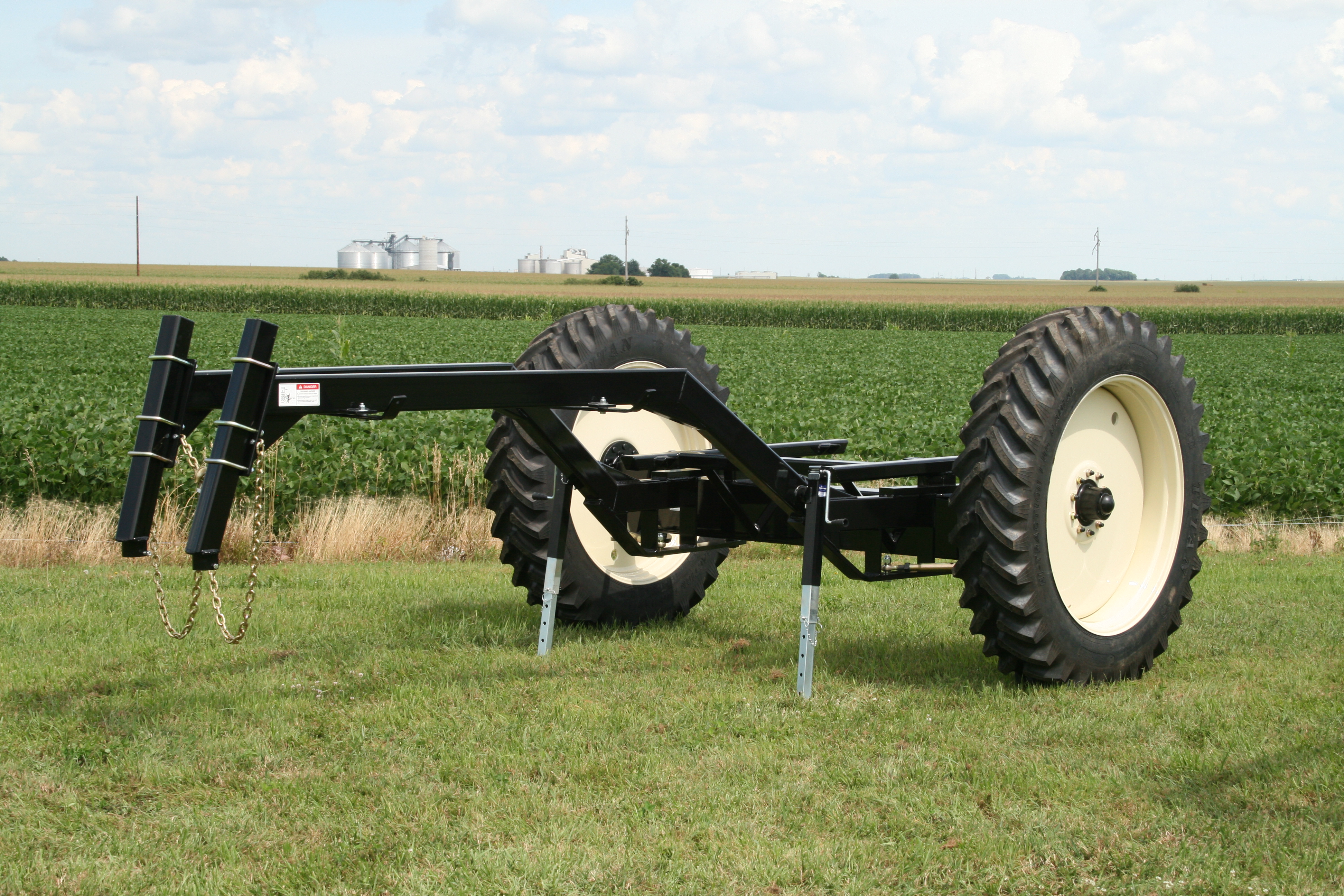

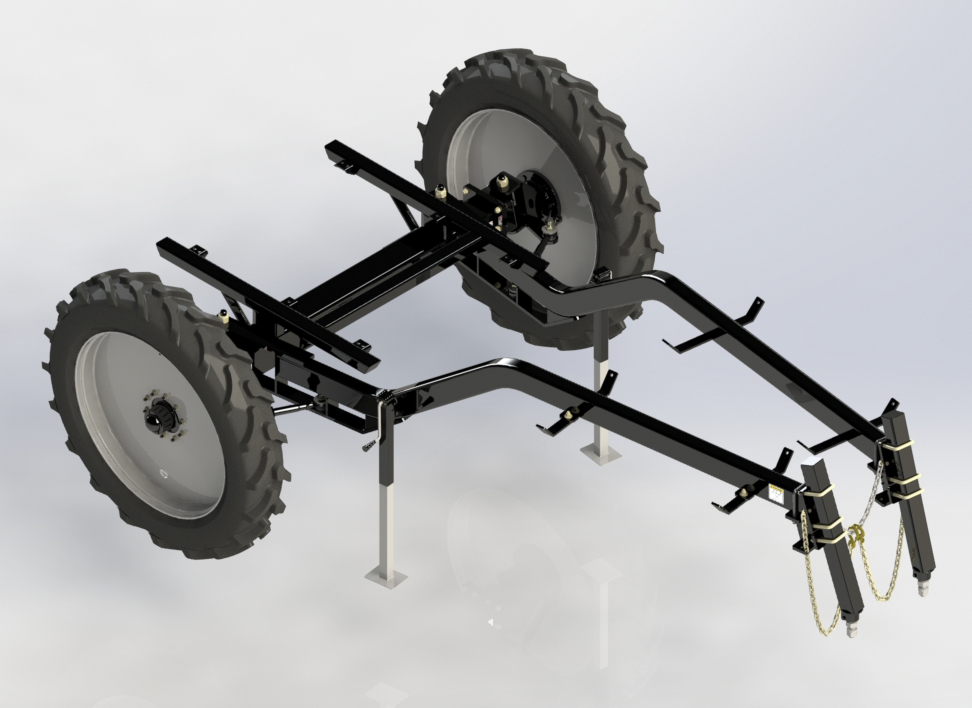

Auto-Steer Carts 6 & 12 Ton Capacity

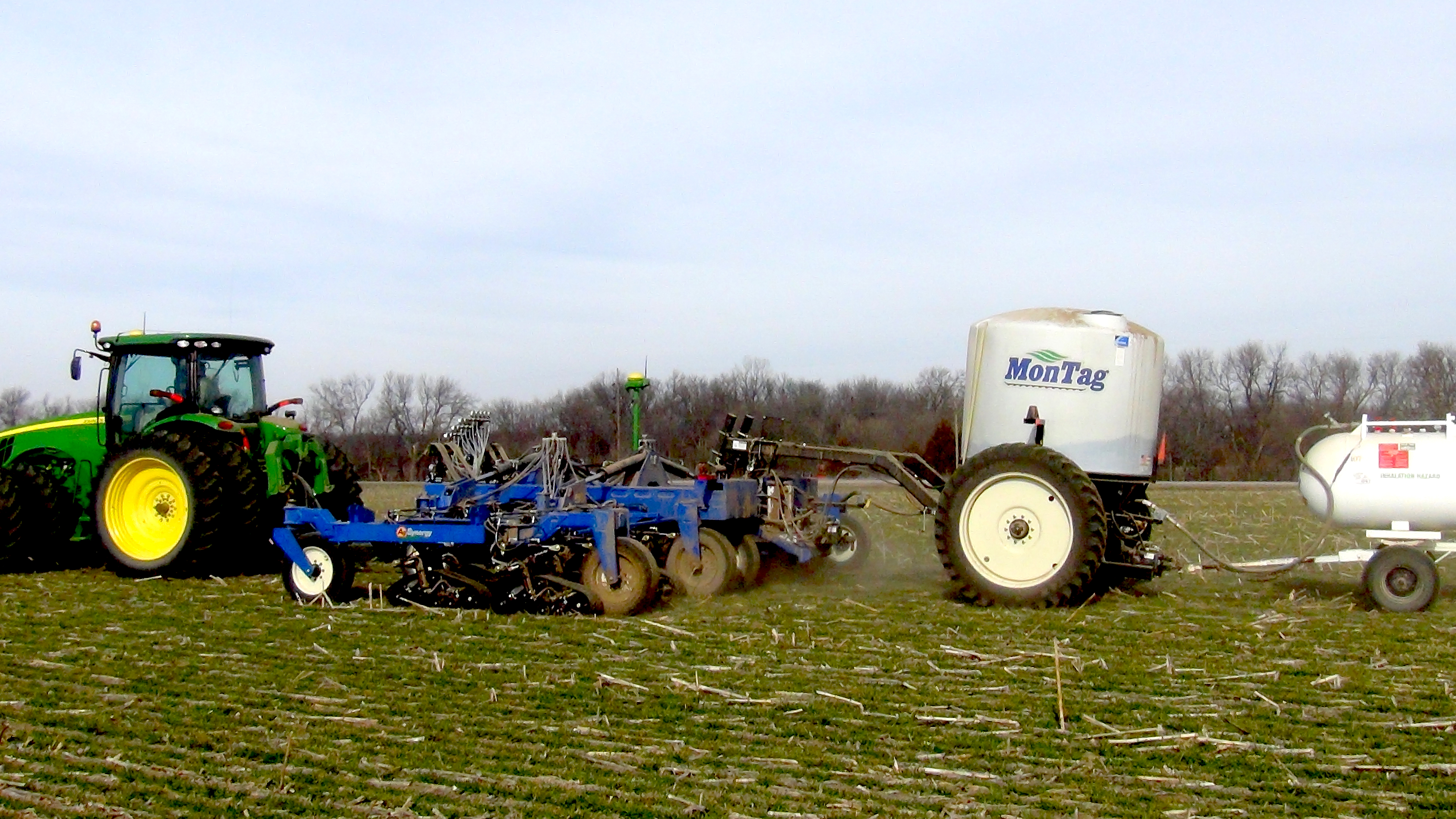

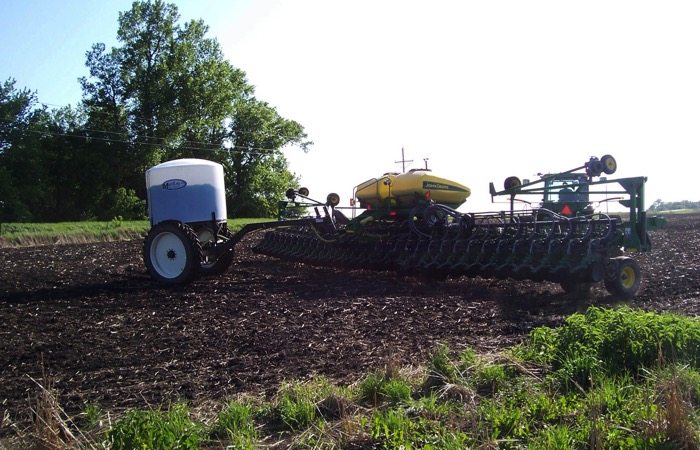

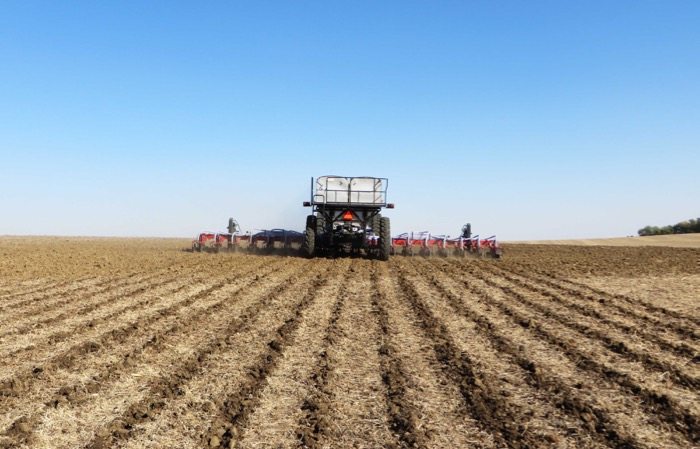

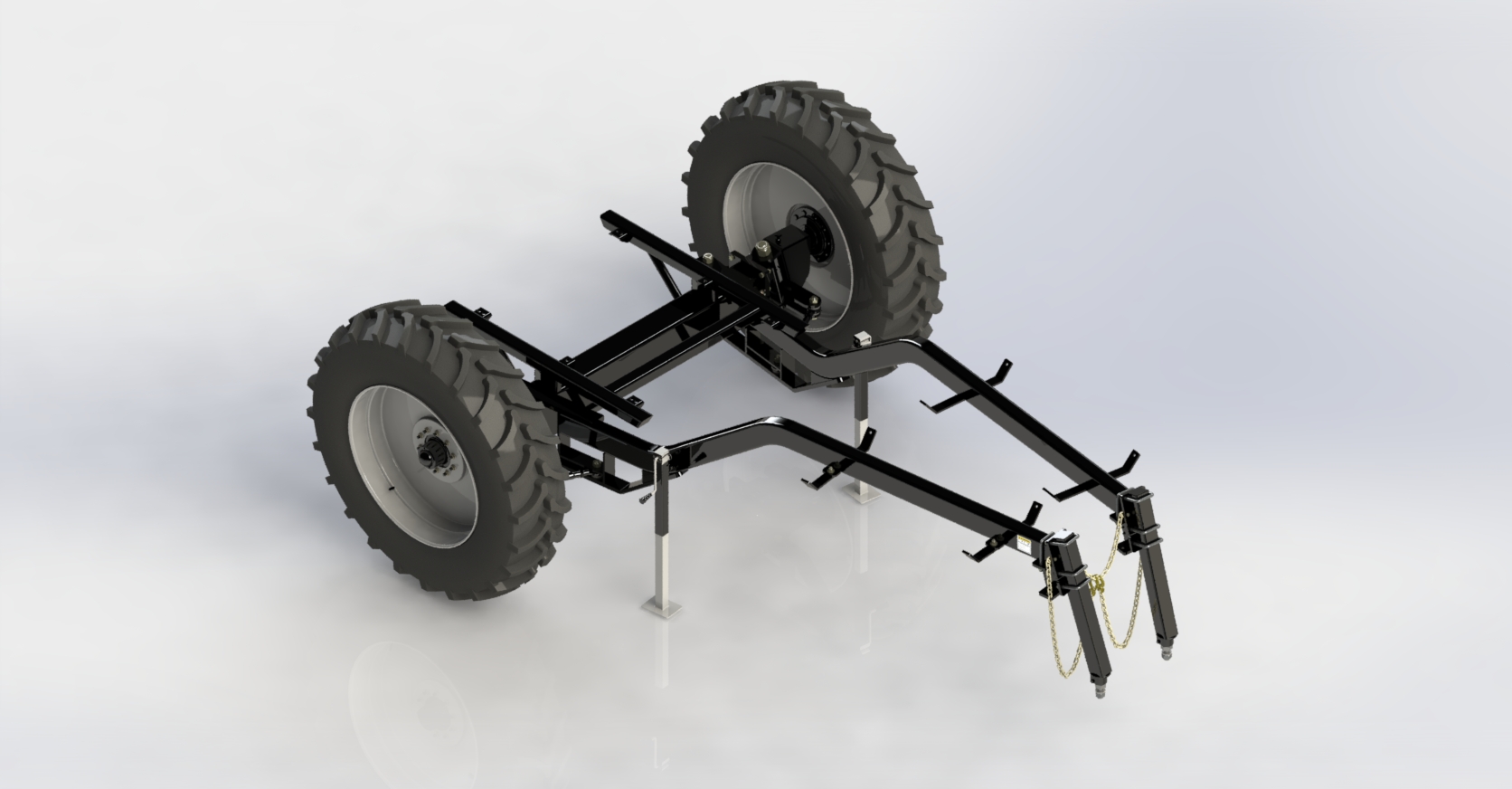

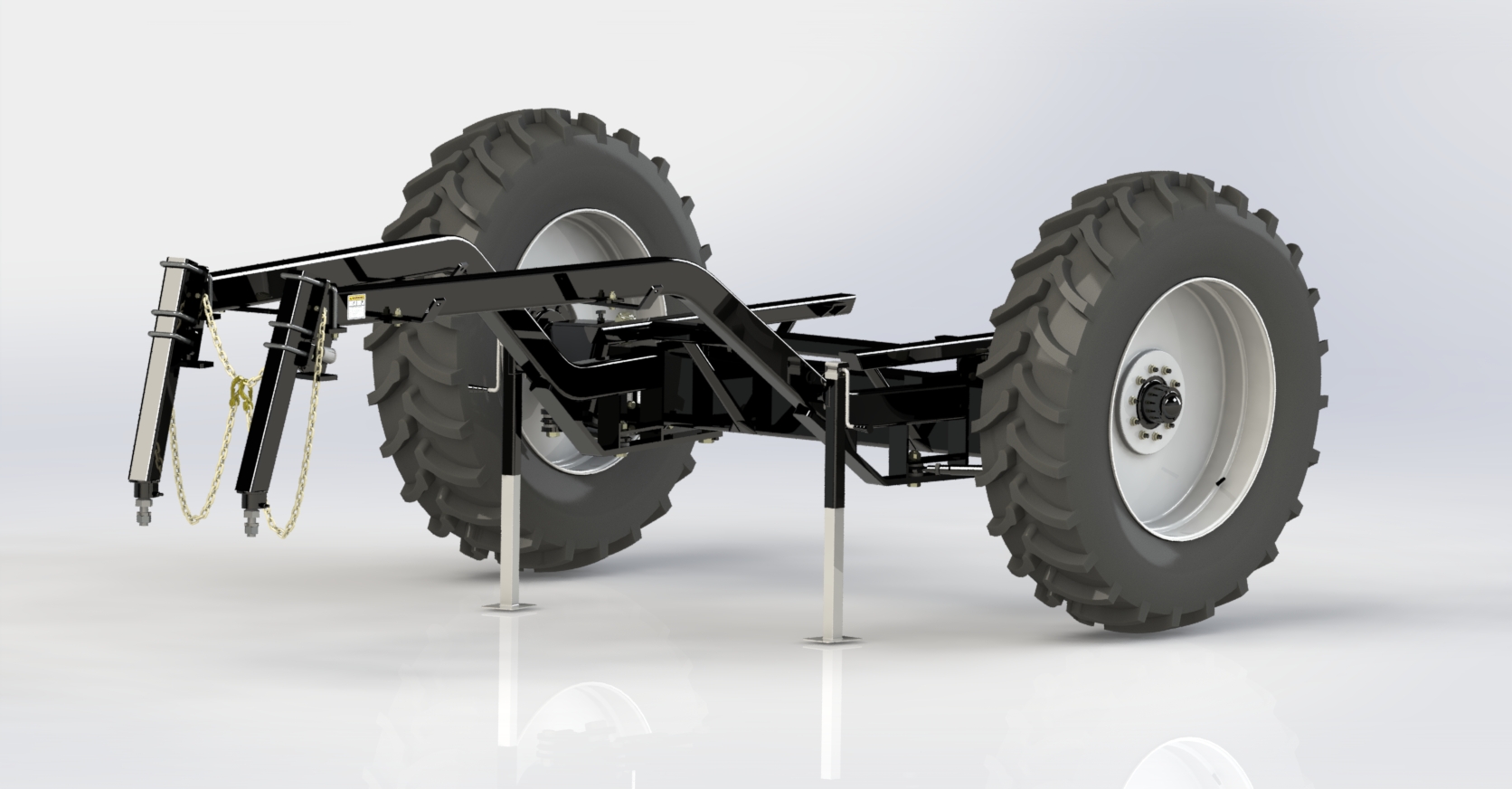

Our high capacity, auto-steer fertilizer cart “steers” itself to precisely follow in the tracks of any implement, thereby staying off of your rows.

Cart Dimensions

Model	Description	Max Weight Capacity	GEN 1	GEN 2	Liquid	Tire Options
C06B	6 Ton Cart	14,000 lbs.	6 tons + pulling cap. of 1,500 gal. NH3 (GVRW 14,000 lbs)	2208 (2-3 tons) + pulling cap. of 1,500 gal. NH3 (GVRW 14,000 lbs)	1200 gal. + pulling cap. of 1,500 gal. NH3 (GVRW 14,000 lbs)	Standard: 420/85 R34” Options: 380/90 R46” 380/85 R34” 480/80 R42” 320/90 R46”
C12B	12 Ton Cart	24,000 lbs.	9 tons + pulling cap. of 2,000 gal. NH3 (GVRW 20,000lbs)	2218 (9 tons) + pulling cap of 2,000 gal. NH3 (GVRW 20,000lbs)	1,700 gal. + pulling cap. of 2,000 gal. NH3 (GVRW 20,000lbs)	Standard: 380/90 R46” Options: 24.5”x 32” 480/80 R42” 650/65 R38”
C12T	12 Ton Track Cart	24,000 lbs.	9 tons + pulling cap. of 2,000 gal. NH3 (GVRW 20,000lbs)	2218 (9 tons) + pulling cap. 2,000 gal. NH3 (GVRW 20,000lbs)	1,700 gal. + pulling cap. of 2,000 gal. NH3 (GVRW 20,000lbs)	TTS 30-1611 TTS 35-1813

Model

Description

Max Weight Capacity

GEN 1

GEN 2

Liquid

Tire Options

C06B

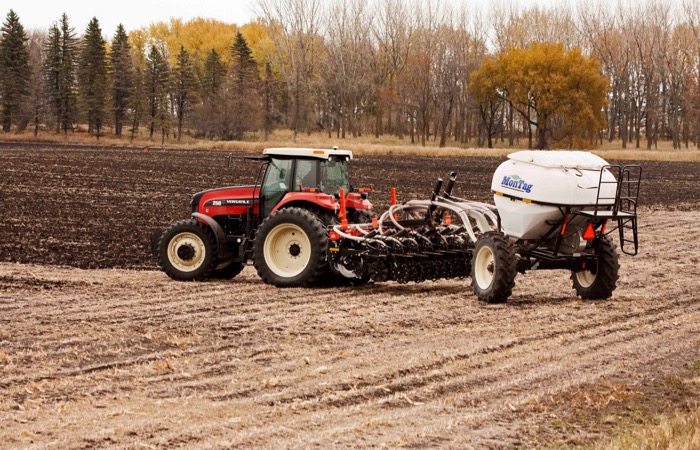

6 Ton Cart

14,000 lbs.

6 tons + pulling cap. of 1,500 gal. NH3 (GVRW 14,000 lbs)

2208 (2-3 tons) + pulling cap. of 1,500 gal. NH3 (GVRW 14,000 lbs)

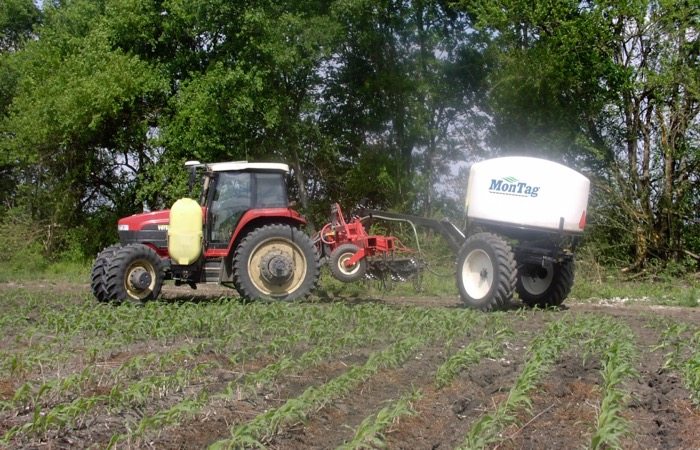

1200 gal. + pulling cap. of 1,500 gal. NH3 (GVRW 14,000 lbs)

Standard: 420/85 R34”

Options:
380/90 R46”
380/85 R34”
480/80 R42” 320/90 R46”

C12B

12 Ton Cart

24,000 lbs.

9 tons + pulling cap. of 2,000 gal. NH3 (GVRW 20,000lbs)

2218 (9 tons) + pulling cap of 2,000 gal. NH3 (GVRW 20,000lbs)

1,700 gal. + pulling cap. of 2,000 gal. NH3 (GVRW 20,000lbs)

Standard: 380/90 R46”

Options: 24.5”x 32”
480/80 R42”
650/65 R38”

C12T

12 Ton Track Cart

24,000 lbs.

9 tons + pulling cap. of 2,000 gal. NH3 (GVRW 20,000lbs)

2218 (9 tons) + pulling cap. 2,000 gal. NH3 (GVRW 20,000lbs)

1,700 gal. + pulling cap. of 2,000 gal. NH3 (GVRW 20,000lbs)

TTS 30-1611
TTS 35-1813

Option	Benefit
Mechanically Steerable Cart	Montag’s patented steering system allows for tighter turns and less crop damage.

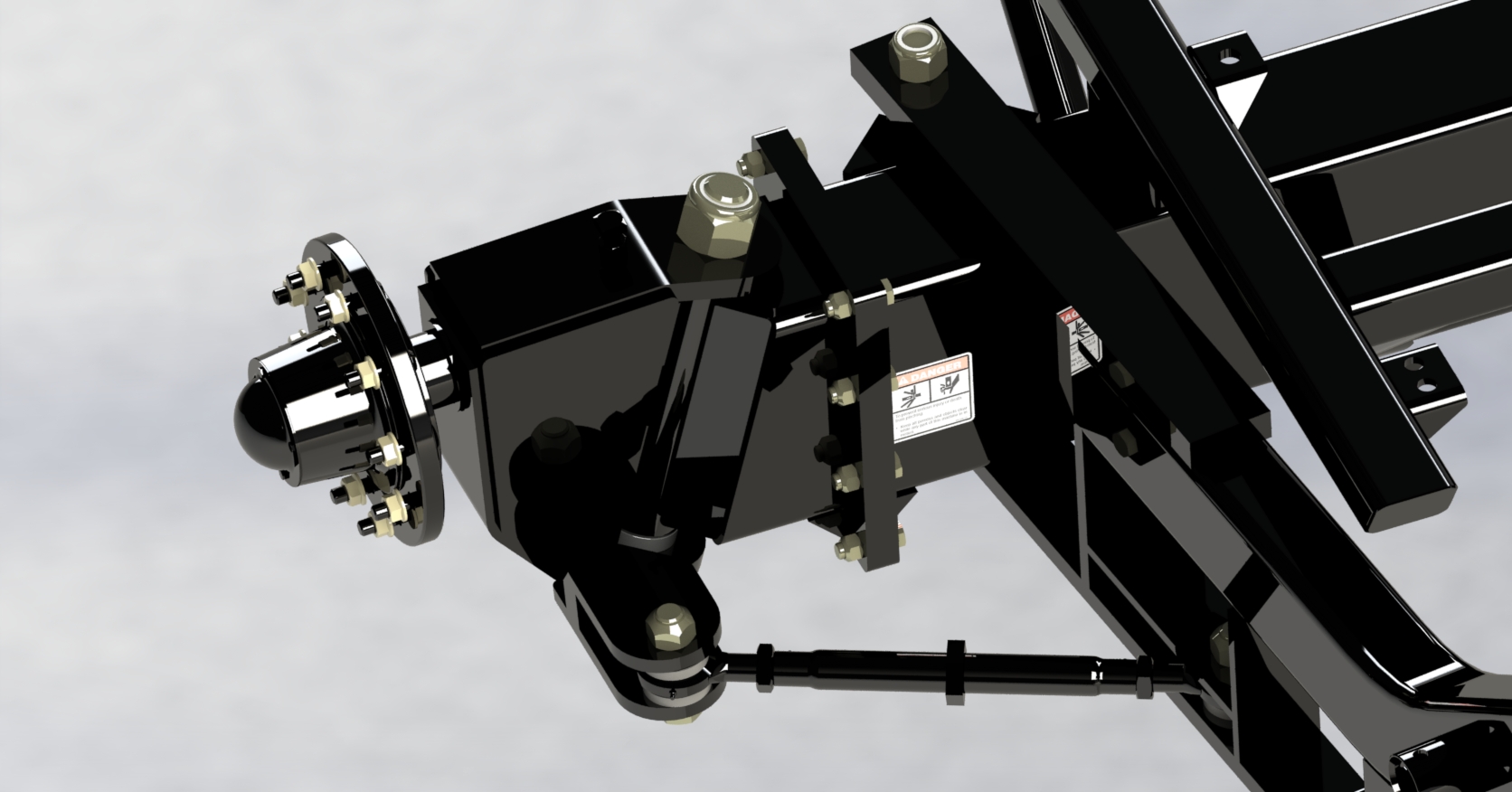

Simple & Clean Design	The auto-steer cart has fewer wear points to maintain. It is also built to survive in harsh fertilizer conditions with heavy replaceable bronze bushings in king-pin and arm-pin.
Available in 2 sizes	Available in 6 or 12 ton capacity.

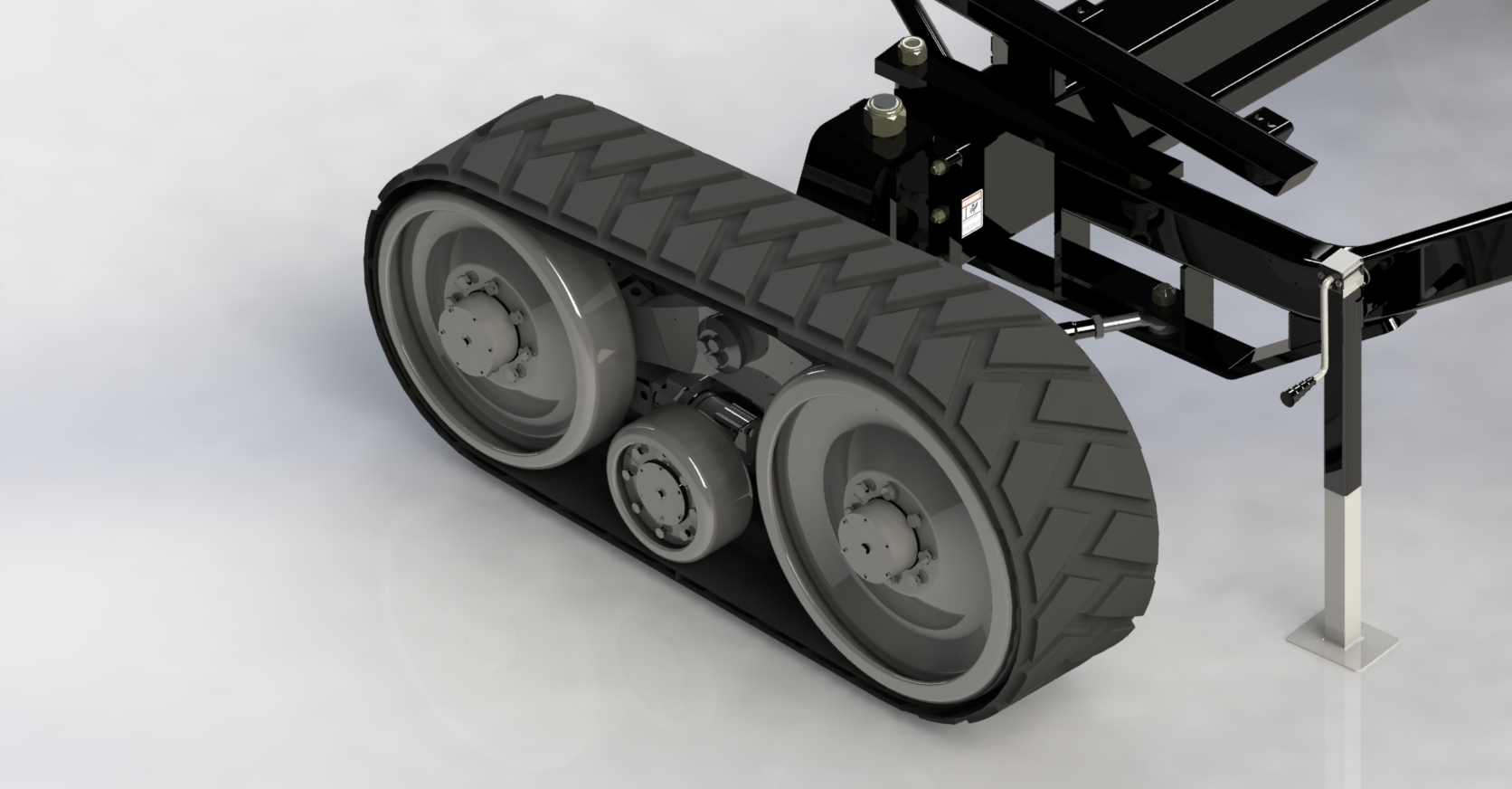

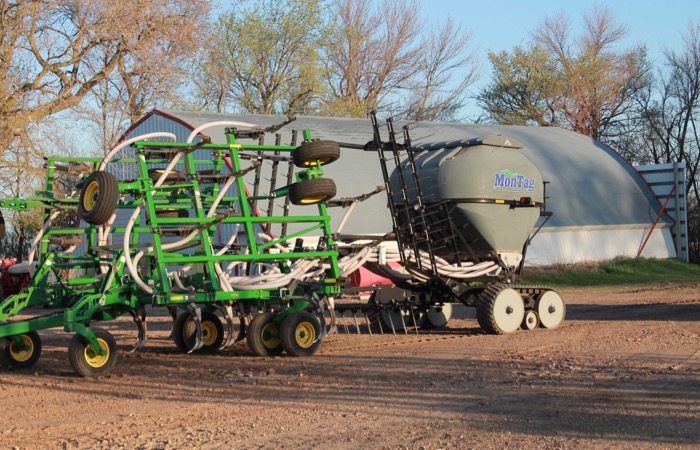

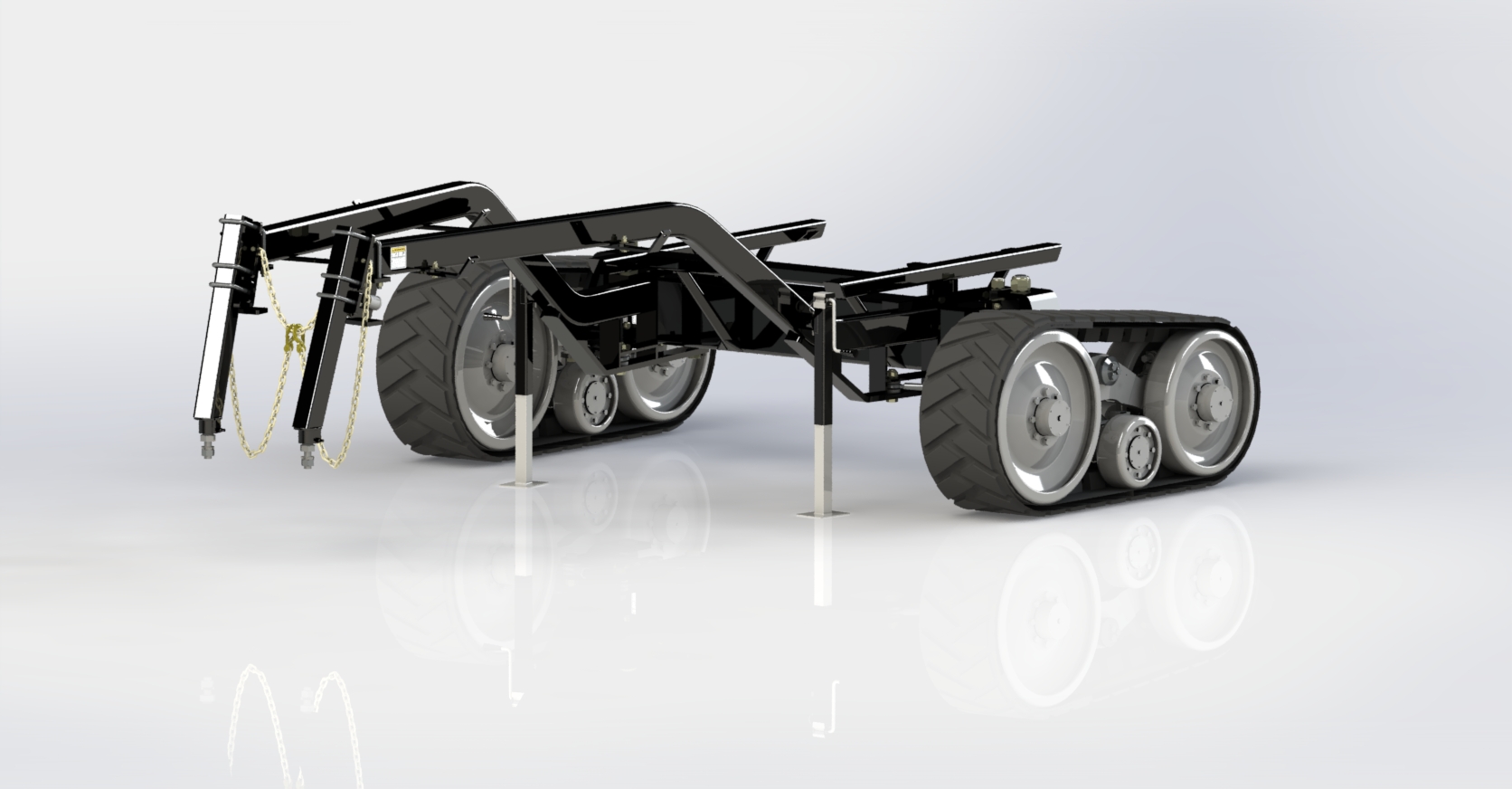

Low Compaction Options	Montag has multiple options available for applications where reduced compaction is preferred. 650/65/R38 floater tires and CAMSO tracks are available for the 12 ton cart.

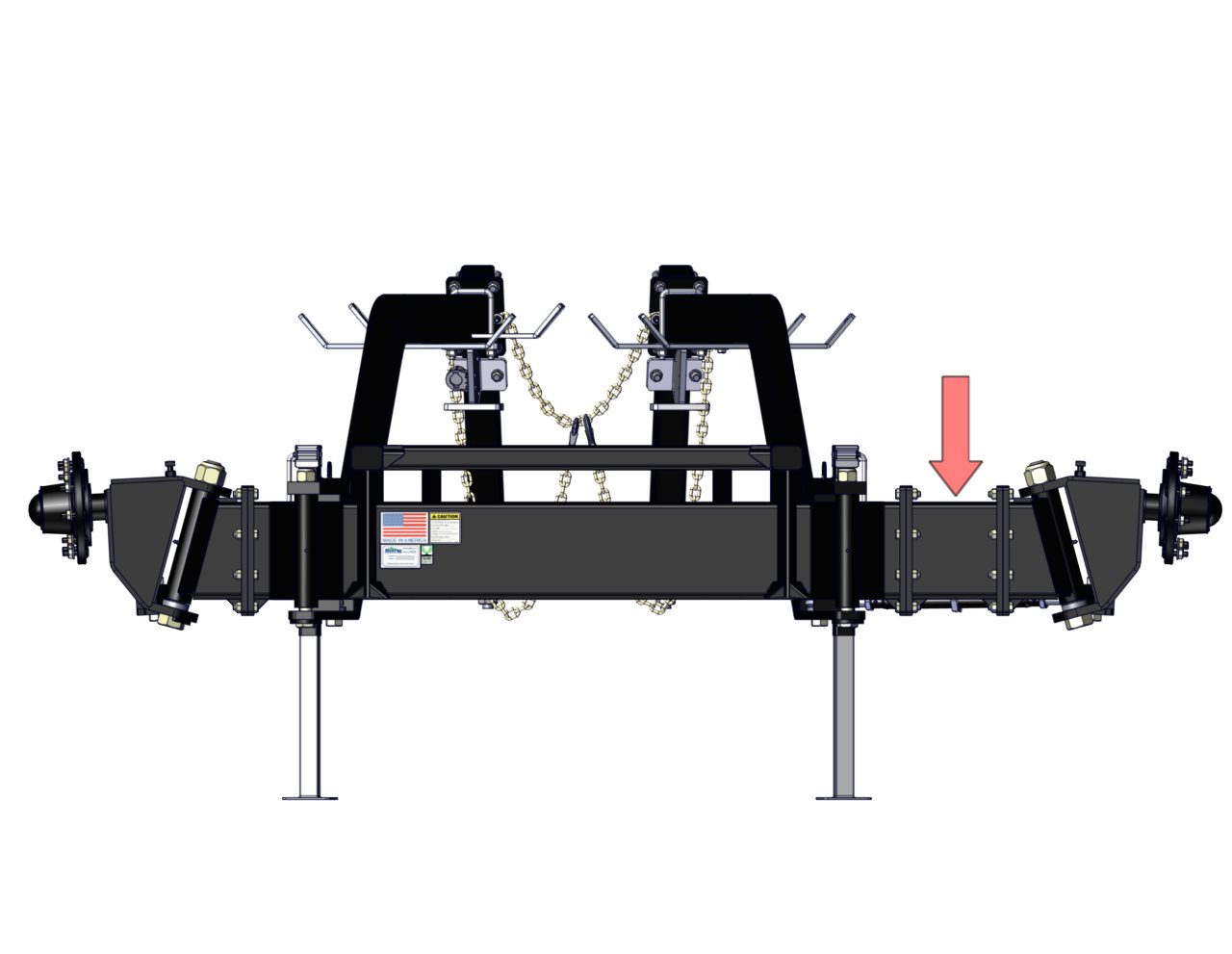

Adjustable Wheel Base	Wheelbase can be extended up to 160″ using simple, bolt-on axle extensions.

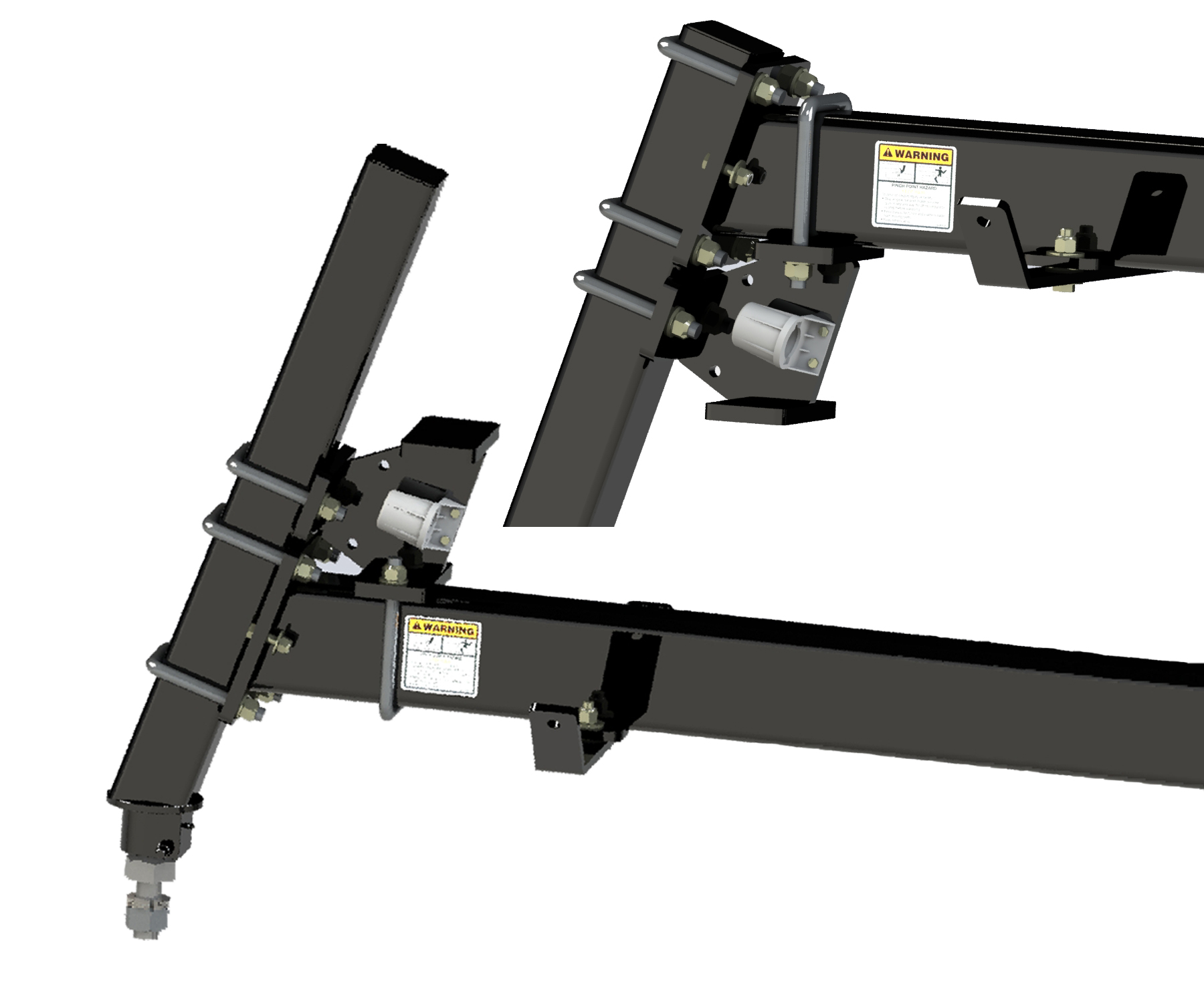

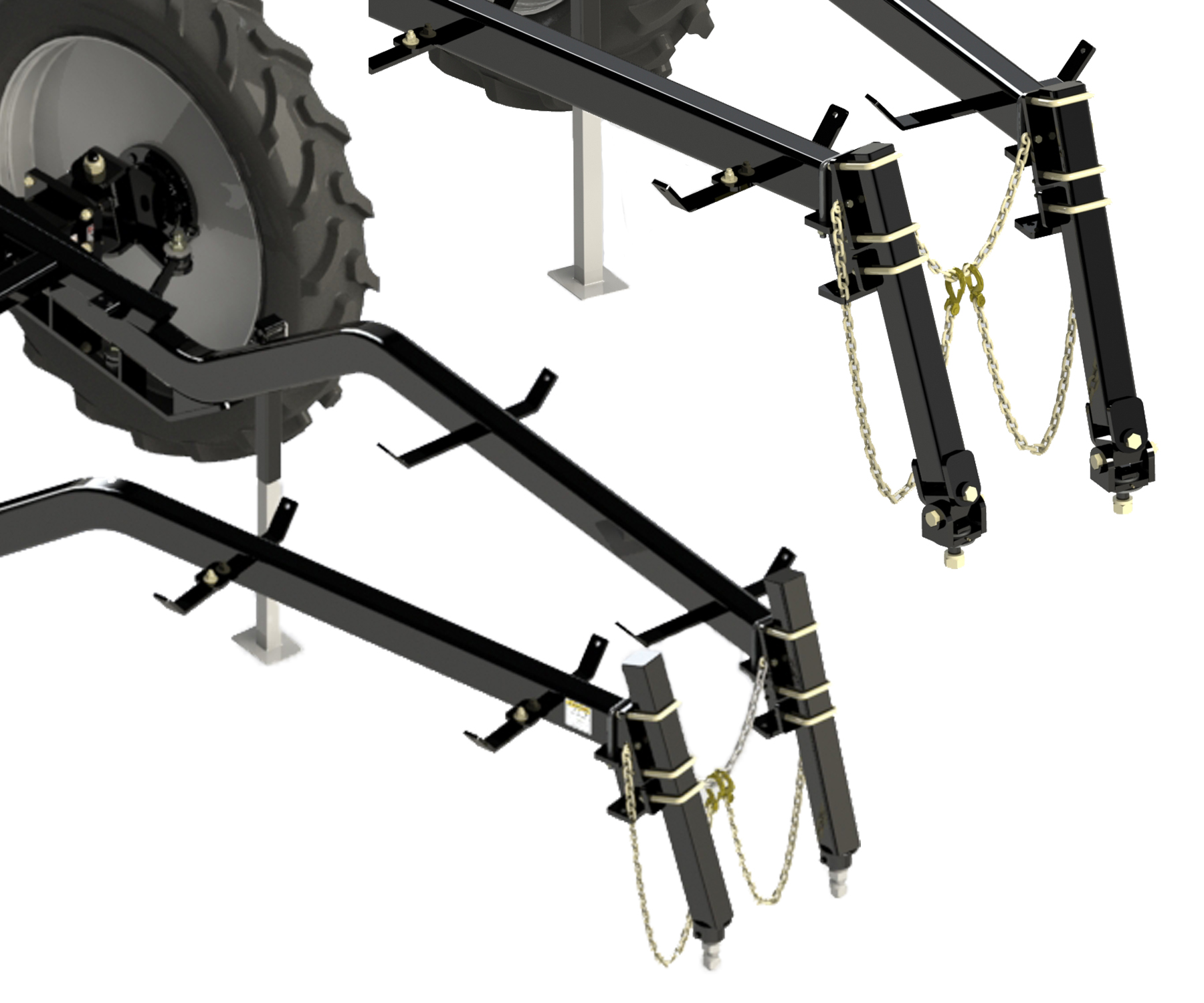

Hitch Mounts	Montag has multiple hitch options for the auto-steer cart: Simple 2-5/16” balls allow for easy disconnection. Knuckle hitches allows for greater range of motion (30-50 degrees) while providing a more robust coupler than the ball hitch. Montag also offers quick-disconnect hitch options for knuckle hitches for a simple 3-point style connection. Mechanical, pneumatic, hydraulic and electrical quick-disconnect options available. See Pre-Season Checkup for more details.

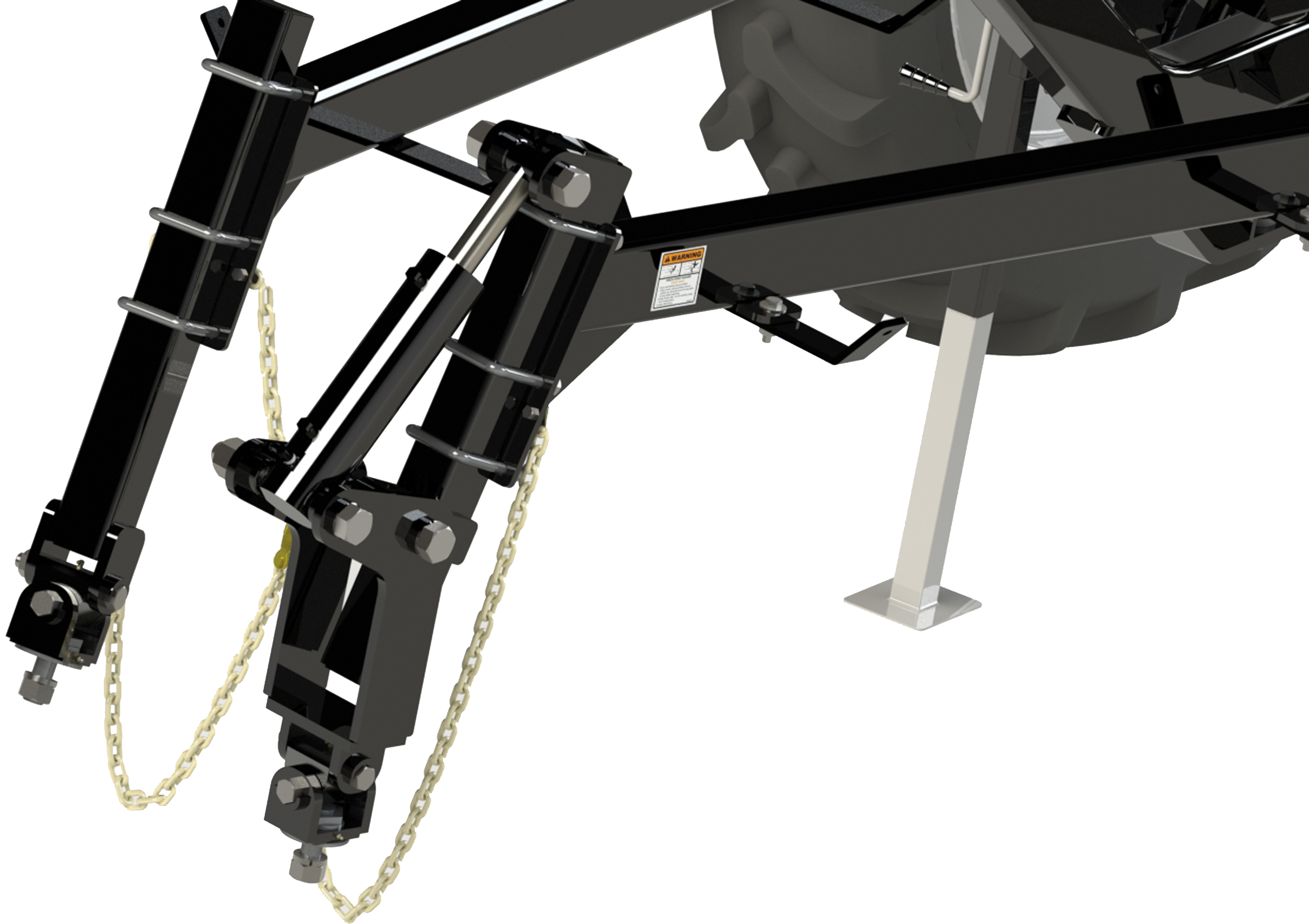

Drift Assist Steering	For applications where cart is slipping on side slopes, Montag has a drift-assist option. This uses a cylinder that is either controlled manually via a SCV or automatically with an internal sensor. Customer is responsible for supplying control for the cylinder.
Metric Cart	Available with a 2.8 meter (or 280cm) wheel base for 70cm rows.
3 year Warranty	High quality, for customer satisfaction and confidence.
